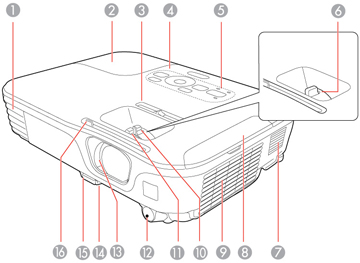

| 1 | Exhaust vent |
| 2 | Lamp cover |
| 3 | Horizontal keystone slider (VS320/VS325W) |
| 4 | Control panel |
| 5 | Projector status lights |
| 6 | Focus ring (VS220) |
| 7 | Speaker |
| 8 | Air filter cover |
| 9 | Intake vent |
| 10 | Zoom ring (VS320/VS325W) |
| 11 | Focus ring |
| 12 | Remote receiver |
| 13 | Lens cover (VS220) or A/V Mute slide (VS320/VS325W) |
| 14 | Front adjustable foot |
| 15 | Foot release lever |
| 16 | Lens cover lever (VS220) or A/V Mute slide lever (VS320/VS325W) |
