Placing Originals on the Scanner Glass

You can place originals up to this size on the scanner glass: Letter (8.5 × 11 inches [216 × 279 mm]) or A4 (8.3 × 11.7 inches [210 × 297 mm]).
  1. Open the document cover.
    Do not lift up the document cover so high that the scanner unit lifts at the same time.

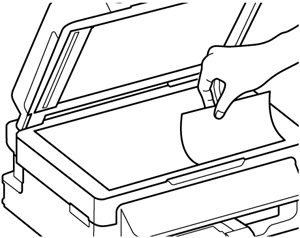

  2. Place your original facedown on the scanner glass with the top facing as shown. Slide the original to the edges of the indicated corner.

    Note: You can place multiple originals on the scanner glass. Just make sure they are at least 0.8 inch (20 mm) away from each other.
  3. Close the document cover gently to keep your original in place.
