Specifications
Printing
|
Printing method
|
On-demand ink jet
|
|
Nozzle configuration
|
Black: 90 nozzles
Color: 87 nozzles (29 each cartridge: cyan, magenta, yellow)
|
|
Print direction
|
Bidirectional minimum distance printing (with logic seeking)
|
Scanning
|
Scanner type
|
Flatbed color
|
|
Photoelectric device
|
CIS
|
|
Effective pixels
|
5,100 ´ 14,040 pixels at 600 dpi
|
|
Document size
|
216 ´ 297 mm (8.5 ´ 11.7 inches) A4 or US letter size
|
|
Scanning resolution
|
600 dpi (main scan)
1200 dpi with Micro Step (sub scan)
|
|
Output resolution
|
50 to 2400, 7200, and 9600 dpi
(50 to 2400 dpi in 1 dpi increments)
|
|
Scanning speed
|
Approximately 15 msec per line at 600 dpi
|
|
Image data
|
16 bits per pixel per color internal
8 bits per pixel per color external (maximum)
|
|
Interface
|
One USB 2.0 Hi-speed or USB 1.1 port
|
|
Light source
|
RGB Three Color LED
|
Paper
Note:
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Single sheets
|
Size
|
A4 (8.3 × 11.7 inches)
A5 (5.8 × 8.3 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Half-letter (5.5 × 8.5 inches)
Executive (7.3 × 10.5 inches)
4 × 6 inches
5 × 7 inches
3.5 × 5 inches
8 × 10 inches
User Defined up to 8.5 × 44 inches
|
|
Paper type
|
Plain bond paper or special paper distributed by Epson
|
|
Thickness
|
0.003 to 0.005 inch (0.08 to 0.13 mm)
|
|
Weight (for plain bond paper)
|
17 lb (64 g/m²) to 24 lb (90 g/m²)
|
Envelopes
|
Size
|
No. 10 (4.1 × 9.5 inches)
DL (4.3 × 8.7 inches)
C6 (4.5 × 6.4 inches)
132 × 220 mm
|
|
Paper type
|
Plain bond paper
|
|
Thickness
|
0.016 to 0.02 inch (0.40 to 0.52 mm)
|
|
Weight
|
20 lb (75 g/m²) to 24 lb (90 g/m²)
|
Note:
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH

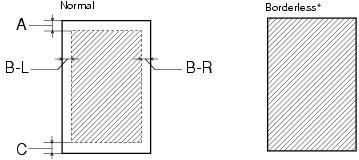

Printable Area
Single sheets or cards
Envelopes
|
A:
|
The minimum top margin is 0.12" (3.0 mm).
|
|
B-L:
|
The minimum left margin is 0.12" (3.0 mm).
|
|
B-R:
|
The minimum right margin is 0.12" (3.0 mm).
|
|
C:
|
The minimum bottom margin is 0.12" (3.0 mm).
|
|
D
|
The minimum bottom margin is 0.79" (20 mm) for envelopes.
|
|
*
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note:
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Ink Cartridges
|
Color
|
Cyan, magenta, yellow, black
|
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Freezing*: 3.2 °F (-16 °C)
|
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution:
To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson's warranty.
Do not use an ink cartridge if the date on the package has expired.
Mechanical
|
Paper path
|
Sheet feeder, top entry
|
|
Sheet feeder capacity
|
About 100 sheets at 17 lb (64 g/m²)
|
|
Dimensions
|
Storage
Width: 16.9 inches (430 mm)
Depth: 13.5 inches (344 mm)
Height: 6.7 inches (170 mm)
|
|
Weight
|
25.8 lb (11.7 kg) without the ink cartridges
|
Electrical
|
Input voltage
|
90 to 132 V
|
|
Rated frequency
|
50 to 60 Hz
|
|
Rated current
|
0.4 A (0.7 A max)
|
|
Power consumption
|
Approx. 10 W (operating)
Approx. 3.0 W in sleep mode
Approx. 0.2 W in power-off mode
|
Environmental
|
Temperature
|
Operation: 50 to 95 °F (10 to 35 °C)
Storage: -4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
|
|
Humidity
(without condensation)
|
Operation: 20 to 80% RH
Storage*: 5 to 85% RH
|
Standards and Approvals
|
Safety
|
UL 60950
CSA C22.2 No. 60950
|
|
EMC
|
FCC part 15 Subpart B class B
CAN/CSA-CEI/IEC CISPR 22
|
USB Interface
|
Standard
|
Based on Universal Serial Bus Specifications Revision 2.0, Universal Serial Bus Device Class Definition for Printing Devices Version 1.1
|
|
Bit rate
|
12 Mbps (Full speed device)
|
|
Data encoding
|
NRZI
|
|
Adaptable connector
|
USB Series B
|
|
Recommended cable length
|
Under 2 meters
|
