Loading Paper
Single Sheets
- Open the output tray and its extension.
- Flip the feeder guard forward.
- Insert your paper against the right edge of the sheet feeder.
- Slide the left edge guide against the paper (but not too tightly).
- Flip the feeder guard back over the paper.
Note: Make sure you didn't insert the paper in front of the feeder guard.
Also be sure to:
- Load the printable side face-up. It's often whiter or brighter than the other side.
- Load letterhead or preprinted paper top edge first.
- Load paper short-edge first, even for landscape-oriented documents and photos.
- Don't load paper above the arrow on the left edge guide.
- Load up to approximately 100 sheets of plain paper at a time.
If you're loading envelopes or special paper, see the next sections.
Envelopes

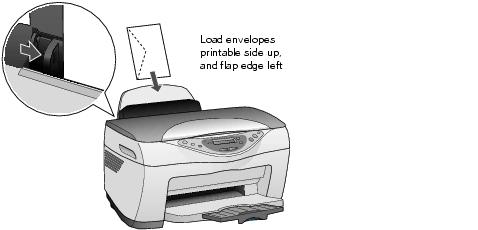

- Load up to 10 envelopes at a time, flap edge left, and printable side up, against the right edge of the sheet feeder.
- Slide the left edge guide against the envelopes (but not too tightly).

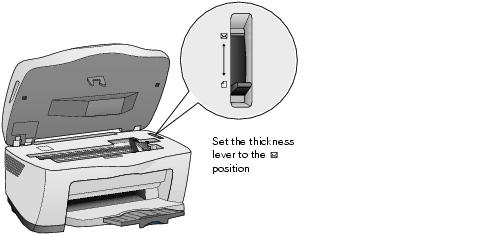

- Lift up the scanner and set the paper thickness lever to the
position (remember to set it back to the
position when you're done).
Note: For best results, press each envelope flat before loading, or load one envelope at a time.
- Lower the scanner until it clicks into place.
Select the following settings when printing on envelopes:
- Plain paper as the Type or Media Type setting
- The correct envelope size as the Size (Windows®) or Paper Size (Macintosh®) setting
- Landscape as the Orientation setting
For instructions on selecting these settings, see:
Special Papers
EPSON® offers the following special ink jet papers for the EPSON Stylus CX5400:
Paper name*
|
Size
|
Part number
|
EPSON Premium Bright White Paper
|
Letter (8.5 x 11 inches)
|
S041586
|
EPSON Photo Quality Ink Jet Paper
|
Letter (8.5 x 11 inches)
|
S041062
|
A4 (8.3 x 11.7 inches)
|
S041061
|
Legal (8.5 x 14 inches)
|
S041067
|
EPSON Photo Quality Ink Jet Cards
|
A6 (4.1 x 5.8 inches)
|
S041054
|
EPSON Photo Paper or EPSON Glossy Photo Paper
|
4 x 6 inches
|
S041134/S041671
|
Letter (8.5 x 11 inches)
|
S041141/S041649 S041271/S041272
|
A4 (8.3 x 11.7 inches)
|
S041140
|
EPSON Matte Paper Heavyweight
|
Letter (8.5 x 11 inches)
|
S041257
|
8 x 10 inches
|
S041467
|
EPSON Double-Sided Matte Paper
|
Letter (8.5 x 11 inches)
|
S041568
|
EPSON Premium Semigloss Photo Paper
|
Letter (8.5 x 11 inches)
|
S041331
|
EPSON Ink Jet Transparencies
|
Letter (8.5 x 11 inches)
|
S041064
|
EPSON DURABrite® Ink Glossy Photo Paper
|
Letter (8.5 x 11 inches)
|
S041731
|
4 x 6 inches
|
S041734
|
* The availability of paper types varies by location.
To order EPSON ink cartridges, paper, and other printing media, contact your dealer or call EPSON at (800) 873-7766 or visit the EPSON StoreSM at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.
To load EPSON special ink jet papers, follow these guidelines:
Paper type
|
Loading capacity
|
Premium Bright White Paper
|
125 Sheets
|
Photo Quality Ink Jet Paper
|
100 sheets, or up to 50 sheets of legal-size paper
|
Photo Quality Ink Jet Cards
|
30 cards
|
Glossy Photo Paper or Photo Paper
|
20 sheets
|
Matte Paper Heavyweight
|
20 sheets with a support sheet beneath the stack
|
Double-Sided Matte Paper
|
1 sheet
|
Premium Semigloss Photo Paper
|
20 sheets
|
Ink Jet Transparencies
|
30 sheets with a sheet of plain paper beneath the stack
|
DURABrite Ink Glossy Photo Paper
|
20 sheets
|
- Load all paper with the printable side up. It's usually whiter or brighter than the other side.
- Always load the short edge first, even for landscape-oriented photos or documents.
- If the paper has a cut corner, position it in the upper right corner as you load it in the sheet feeder.
- Check the paper package for additional instructions on using special papers.
