Scanning to a PDF File
Using Epson Scan, you can create a PDF file with the following features.
Scanning multiple document pages into a single PDF file: You can scan multiple document pages and save them in a single PDF file.
Assigning document security settings: You can assign password settings to the PDF file.
Specifying the page number in a single PDF file: You can specify the maximum number of pages that can be included in one PDF file. For example, if you are scanning 20-page documents, and specify the page number to be included in one PDF as 4, 5 PDF files are automatically created.
See one of these sections to start scanning to a PDF file.
Office Mode: Scanning to a PDF File in Office Mode
Home Mode: Scanning to a PDF File in Home Mode
Professional Mode: Scanning to a PDF File in Professional Mode
Scanning to a PDF File in Office Mode
 |
Place your document on the document table. See Placing Documents or Photos of these sections for instructions.
|
 |
Start Epson Scan using the
 Start button or the Epson Scan icon. See Using the Start Button or Using the EPSON Scan Icon for instructions. |
 |
In the Office Mode window, select the Image Type, Document Source, Size, and Resolution settings. For details, see Scanning in Office Mode.
|
 |
Click Preview to preview your image(s). The Preview window appears and displays your image(s). See Previewing and Adjusting the Scan Area for instructions.
|
 |
Make any other necessary image adjustments. See Adjusting the Color and Other Image Settings for details.
|
 |

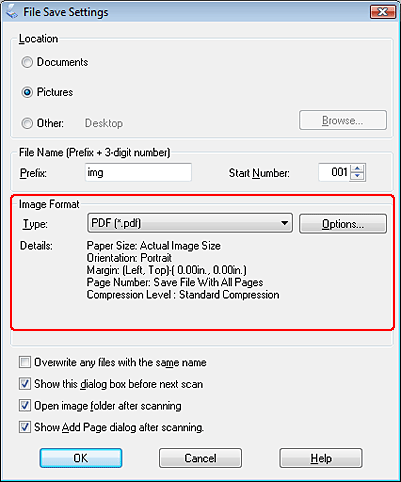

Click Scan. The File Save Settings window appears.
|
 |
Select PDF as the Type setting. The current Paper Size, Orientation, Margin, Page Number, and Compression Level settings are displayed below it.
|
 |
Click Options. You see the EPSON PDF Plug-in Settings window.
|

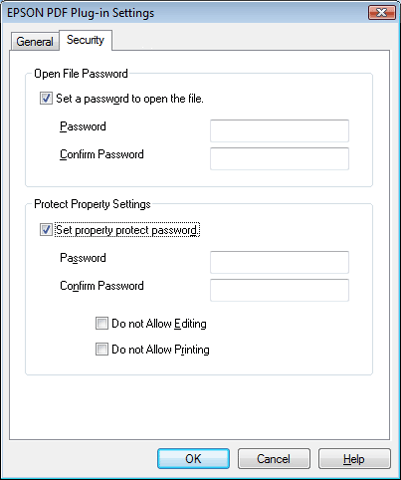

To assign password settings to the PDF file, click the Security tab and select the password settings.

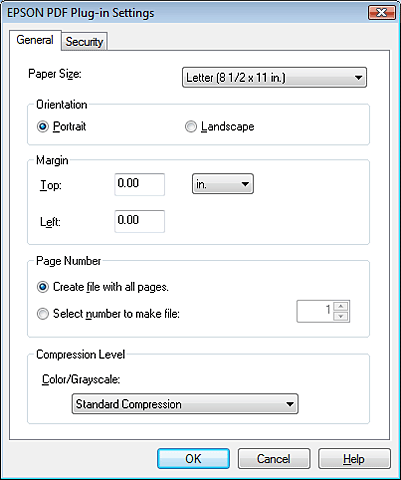

To specify the maximum number of pages that can be included in one PDF file, click the General tab, click Select number to make file, and adjust the number.
For other settings in the EPSON PDF Plug-in Settings window, see Epson Scan Help for details.
 |
Select the settings that match your document and click OK. You return to the File Save Settings window.
|
 |
Make any other file save settings, and click OK. Epson Scan scans your document and displays the window below.
|
Note:|
If you deselect the Show Add Page dialog after scanning check box in the File Save Settings window, this window does not appear and Epson Scan automatically saves your document.
|
 |

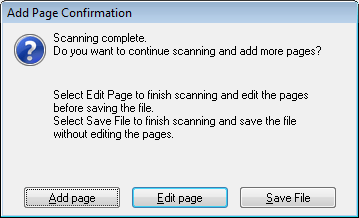

Select one of the following options.
|
Add page: Click this button to scan the next page of your document. Replace the first page on the document table with the next page, and click Scan. Repeat this step for each page in your document. When you are finished, click Edit page and go to step 12.
Edit page: Click this button if you have scanned all the necessary pages so you can edit the scanned pages before saving them in one PDF file. Then go to step 12.
Save File: Click this button when you are ready to finish scanning and save the scanned pages into one PDF without editing them. Then go to step 14.
 |

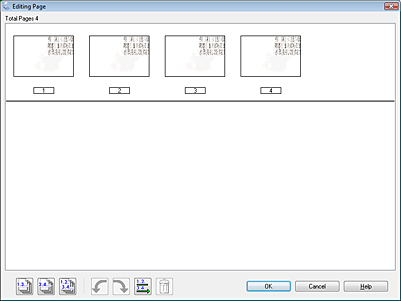

You see the Editing Page window displaying thumbnail images of each scanned page.
|
Use the tools at the bottom of the Editing Page window to select, rotate, reorder, and delete pages.
If you want to include all the document pages in your PDF files as they currently look, click the
all pages icon to select all the pages, then go to step 13.
all pages icon to select all the pages, then go to step 13.If you want to rotate pages, click the pages, or use the
odd pages,
even pages, or all pages icon to select the pages, then click the
left or
right rotate icon to rotate them.
odd pages, even pages, or all pages icon to select the pages, then click the left or right rotate icon to rotate them.If you want to delete pages, click the pages, or use the odd pages, or even pages icon to select the pages, then click the
delete icon to delete them.
odd pages, or even pages icon to select the pages, then click the delete icon to delete them. Note:|
The
delete icon is not available when all pages are selected. |
For further details on the tools in the Editing Page window, see Epson Scan Help.
 |
When you have finished editing your pages, click OK. The pages are saved in one PDF file in Pictures, My Pictures, or the location you selected in the File Save Settings window, and you return to the Office Mode window.
|
 |
Click Close to exit Epson Scan.
|
Scanning to a PDF File in Home Mode
|
Place your document on the document table. See Placing Documents or Photos for instructions.
|
|
Start Epson Scan using the
Start button or the Epson Scan icon. See Using the Start Button or Using the EPSON Scan Icon for instructions. |
|
In the Home Mode window, select the Document Type, Image Type, and Destination settings. For details, see Scanning in Home Mode.
|
|
Click Preview to preview your image(s). The Preview window appears and displays your image(s). See Previewing and Adjusting the Scan Area for instructions.
|
|
Make any other necessary image adjustments. See Adjusting the Color and Other Image Settings for details.
|
|
Size your image as necessary. See Selecting the Scan Size for details.
|
|
Click Scan. The File Save Settings window appears.
|
|
Select PDF as the Type setting. The current Paper Size, Orientation, Margin, Page Number, and Compression Level settings are displayed below it.
|
|
Click Options. You see the EPSON PDF Plug-in Settings window.
|
To assign password settings to the PDF file, click the Security tab and select the password settings.
To specify the maximum number of pages that can be included in one PDF file, click the General tab, click Select number to make file, and adjust the number.
For other settings in the EPSON PDF Plug-in Settings window, see Epson Scan Help for details.
|
Select the settings that match your document and click OK. You return to the File Save Settings window.
|
|
Make any other file save settings, and click OK. Epson Scan scans your document and displays the window below.
|
Note:|
If you deselect the Show Add Page dialog after scanning check box in the File Save Settings window, this window does not appear and Epson Scan automatically saves your document.
|
|
Select one of the following options.
|
Add page: Click this button to scan the next page of your document. Replace the first page on the document table with the next page, and click Scan. Repeat this step for each page in your document. When you are finished, click Edit page and go to step 13.
Edit page: Click this button if you have scanned all the necessary pages so you can edit the scanned pages before saving them in one PDF file. Then go to step 13.
Save File: Click this button when you are ready to finish scanning and save the scanned pages into one PDF without editing them. Then go to step 15.
|
You see the Editing Page window displaying thumbnail images of each scanned page.
|
Use the tools below the Editing Page window to select, rotate, reorder, and delete pages.
If you want to include all the document pages in your PDF files as they currently look, click the all pages icon to select all the pages, then go to step 14.
all pages icon to select all the pages, then go to step 14.If you want to rotate pages, click the pages, or use the odd pages, even pages, or all pages icon to select the pages, then click the left or right rotate icon to rotate them.
odd pages, even pages, or all pages icon to select the pages, then click the left or right rotate icon to rotate them.If you want to delete pages, click the pages, or use the odd pages or, even pages icon to select the pages, then click the delete icon to delete them.
odd pages or, even pages icon to select the pages, then click the delete icon to delete them. Note:|
The
delete icon is not available when all pages are selected. |
For further details on the tools in the Editing Page window, see Epson Scan Help.
|
When you have finished editing your pages, click OK. The pages are saved in one PDF file in Pictures, My Pictures, or the location you selected in the File Save Settings window, and you return to the Home Mode window.
|
 |
Click Close to exit Epson Scan.
|
Scanning to a PDF File in Professional Mode
|
Place your document on the document table. See Placing Documents or Photos for instructions.
|
|
Start Epson Scan using the
Start button or the Epson Scan icon. See Using the Start Button or Using the EPSON Scan Icon for instructions. |
|
In the Professional Mode window, select the Document Type, Document Source, Auto Exposure Type, Image Type, and Resolution settings. For details, see Scanning in Professional Mode.
|
|
Click Preview to preview your image(s). The Preview window appears and displays your image(s). See Previewing and Adjusting the Scan Area for instructions.
|
|
Make any other necessary image adjustments. See Adjusting the Color and Other Image Settings for details.
|
|
Size your image as necessary. See Selecting the Scan Size for details.
|
|
Click Scan. The File Save Settings window appears.
|
|
Select PDF as the Type setting. The current Paper Size, Orientation, Margin, Page Number, and Compression Level settings are displayed below it.
|
|
Click Options. You see the EPSON PDF Plug-in Settings window.
|
To assign password settings to the PDF file, click the Security tab and select the password settings.
To specify the maximum number of pages that can be included in one PDF file, click the General tab, click Select number to make file, and adjust the number.
For other settings in the EPSON PDF Plug-in Settings window, see Epson Scan Help for details.
|
Select the settings that match your document and click OK. You return to the File Save Settings window.
|
|
Make any other file save settings, and click OK. Epson Scan scans your original and displays the window below.
|
Note:|
If you deselect the Show Add Page dialog after scanning check box in the File Save Settings window, this window does not appear and Epson Scan automatically saves your document.
|
|
Select one of the following options.
|
Add page: Click this button to scan the next page of your document. Replace the first page on the document table with the next page, and click Scan. When you are finished, click the Edit page button and go to step 13.
Edit page: Click this button if you have scanned all the necessary pages so you can edit the scanned pages before saving them in one PDF file. Then go to step 13.
Save File: Click this button when you are ready to finish scanning and save the scanned pages into one PDF without editing them. Then go to step 15.
|
You see the Editing Page window displaying thumbnail images of each scanned page.
|
Use the tools below the Editing Page window to select, rotate, reorder, and delete pages.
If you want to include all the document pages in your PDF files as they currently look, click the all pages icon to select all the pages, then go to step 14.
all pages icon to select all the pages, then go to step 14.If you want to rotate pages, click the pages, or use the odd pages, even pages, or all pages icon to select the pages, then click the left or right rotate icon to rotate them.
odd pages, even pages, or all pages icon to select the pages, then click the left or right rotate icon to rotate them.If you want to delete pages, click the pages, or use the odd pages or even pages icon to select the pages, then click the delete icon to delete them.
odd pages or even pages icon to select the pages, then click the delete icon to delete them. Note:|
The
delete icon is not available when all pages are selected. |
For further details on the tools in the Editing Page window, see Epson Scan Help.
|
When you have finished editing your pages, click OK. The pages are saved in one PDF file in Pictures, My Pictures, or the location you selected in the File Save Settings window, and you return to the Professional Mode window.
|
|
Click Close to exit Epson Scan.
|
