Placing Film or Slides

Removing the Document Mat

To scan film strips or slides, you need to remove the document mat from the scanner cover. This uncovers the transparency unit window so your scanner can use it to scan your film or slides.
Open the scanner cover and gently slide up the document mat to remove it.
Use a soft cloth to wipe the transparency unit window and the document table before placing your film or slides.
a. transparency unit window
To place film for scanning, see Placing Film in the Holder.
To place slides for scanning, see Placing Slides in the Holder.

Placing Film in the Holder

Open the cover of the 35mm film strip holder.

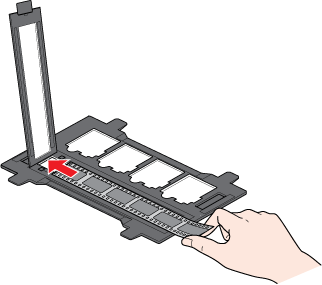

Slide your film strip all the way into the film holder with the shiny base side facing down. Your images and any wording on the film strip should appear backwards on the side that faces up. You can scan up to 6 standard 35mm images per film strip.
Note:
Hold the edge of the film gently or wear gloves when touching the film; otherwise you may damage the film.
Make sure the white stickers on the back of the film holder and the areas around them are not scratched, dusty, or covered in any way. If the areas are obscured, the scanner may have trouble recognizing your film.
Do not cover the small holes or slots in the film holder.
Close the cover and press it down until you hear a click. Make sure the cover is properly seated and closed all the way.
Make sure the film strip is placed as shown.

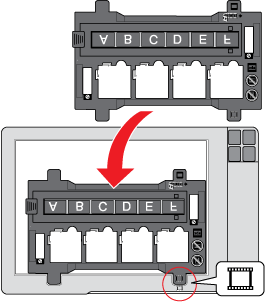

Place the film holder on the document table so that it is aligned as shown. Make sure the tab marked with the film icon on the film holder fits into the area marked with the same icon on the scanner.
Make sure you removed the document mat. See Removing the Document Mat.
Close the scanner cover.
When you are finished scanning film, be sure to replace the document mat before scanning documents or photos. See Replacing the Document Mat.
Note:
The film holder can be stored in the scanner cover behind the document mat. See Storing the Film Holder.

Placing Slides in the Holder

You can scan up to four 35mm slides at a time using the slide portion of the film holder.
Note:
You cannot scan negative slides.
Make sure the white stickers on the back of the film holder and the areas around them are not scratched, dusty, or covered in any way. If the areas are obscured, the scanner may have trouble recognizing your slides.
Do not cover the small holes or slots in the film holder.
Place the film holder on the document table so that it is aligned as shown. Make sure the tab marked with the slide icon on the film holder fits into the area marked with the same icon on the scanner.
Place up to four slides in the film holder with the shiny base side facing down. Your images should appear backwards on the side that faces up. Your images should be oriented as shown.
Note:
Make sure you place the long edge of the slide in the film holder as shown above.
Make sure you removed the document mat. See Removing the Document Mat.
Close the scanner cover.
When you are finished scanning slides, be sure to replace the document mat before scanning documents or photos. See Replacing the Document Mat.
Note:
The film holder can be stored in the scanner cover behind the document mat. See Storing the Film Holder.

Storing the Film Holder

When you are not using the film holder, you can store it inside the scanner cover.
Open the scanner cover and remove the document mat. For instructions, see Removing the Document Mat.
Slide the film holder into the slots in the scanner cover.
Replace the document mat. See Replacing the Document Mat for instructions.

Replacing the Document Mat

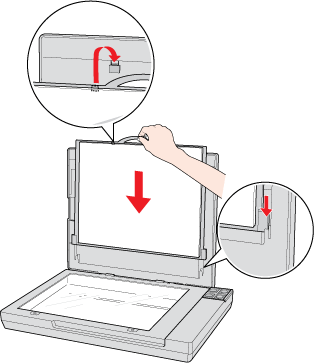

Replace the document mat by sliding it into the notches in the scanner cover. Make sure the white surface faces outwards.
