Improving Print Quality

Checking the Print Head Nozzles

Using the Nozzle Check utility
Using the control panel buttons

If you find that the printout is unexpectedly faint or that dots are missing, you may be able to identify the problem by checking the print head nozzles.

You can check the print head nozzles from your computer using the Nozzle Check utility in the printer software or from the printer itself by using the printer's control panel buttons.

Note:
  • If the  ink out light is flashing, you cannot clean the print head. Replace the appropriate ink cartridge first.
  • Make sure the CD/DVD tray is not inserted into the printer and the CD/DVD guide is closed before using the Nozzle Check utility.

Using the Nozzle Check utility

Refer to the sections below to use the Nozzle Check utility.

Windows

Follow the steps below to use the Nozzle Check utility.

Make sure that Letter size paper is loaded in the sheet feeder.

Access the printer software.
Accessing the Printer Software for Windows

Click the Maintenance tab, then click the Nozzle Check button.

Follow the on-screen instructions.

For Mac OS X

Follow the steps below to use the Nozzle Check utility.

Make sure that Letter size paper is loaded in the sheet feeder.

Access the EPSON Printer Utility dialog box.
Accessing the Printer Software for Mac OS X

Click the Nozzle Check button in the Utility window.

Follow the on-screen instructions.


[Top]

Using the control panel buttons

Follow the steps below to check the print head nozzles using the control panel buttons.

Turn off your printer.

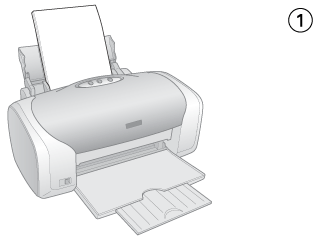

Make sure that Letter size paper is loaded in the sheet feeder, then lower the output tray. Make sure the CD/DVD tray is not inserted into the printer and the CD/DVD guide is closed.

Hold down the  paper button and the  power button to turn on the printer.

Release only the  power button when the printer turns on. When the printer starts to print the nozzle check, release the  paper button.

Below are two sample nozzle check patterns.

  Good sample

  Print head needs to be cleaned

If the nozzle check page does not print satisfactorily, there is a problem with the printer. This could be a clogged ink nozzle or a misaligned print head.
See Cleaning the Print Head
See Aligning the Print Head
