Appendix
Specifications
System Requirements
To use your printer and its software, your system should meet the requirements below.
Windows System Requirements
- A Microsoft® Windows compatible PC with a Pentium®-equivalent processor (300 MHz or faster recommended)
- Microsoft Windows 98SE, Windows 2000, Windows Me, Windows XP, or Windows XP Professional x64 Edition preinstalled
- 256MB RAM (512MB or more recommended)
- 300MB free hard disk space (550MB or more recommended)
- SVGA monitor with at least a 256 color display
- CD-ROM or DVD drive for installing the printer software
- A Windows-compliant USB port
- A shielded USB "AB" cable up to 6.5 feet (2 meters) long. Using an improperly shielded USB cable may cause the printer to malfunction.
Macintosh System Requirements
- Macintosh OS X 10.2.8 to 10.4.x (Power PC or Intel® Core Duo Processor)
- 256MB RAM (512MB or more recommended)
- 300MB free hard disk space (550MB or more recommended)
- SVGA monitor with at least a 256 color display
- CD-ROM or DVD drive for installing the printer software
- A built-in USB port
- A shielded USB "AB" cable up to 6.5 feet (2 meters) long. Using an improperly shielded USB cable may cause the printer to malfunction.
Technical Specifications
Printing
Printing method
|
On-demand ink jet
|
Nozzle configuration
|
Black: 90 nozzles
Color: 450 nozzles (90 each cartridge: cyan, magenta, yellow, light cyan, light magenta)
|
Print direction
|
Bidirectional with logic seeking
|
Paper
Note:
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Single sheets
Size
|
A4 (8.3 × 11.7 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Half-letter (5.5 × 8.5 inches)
4 × 6 inches
5 × 7 inches
3.5 × 5 inches
8 × 10 inches
User Defined up to 8.5 × 44 inches
|
Paper type
|
Plain bond paper or special paper distributed by Epson
|
Thickness
|
0.003 to 0.004 inch (0.08 to 0.11 mm)
|
Weight (for plain bond paper)
|
17 lb (64 g/m²) to 24 lb (90 g/m²)
|
Envelopes
Size
|
No. 10 (4.1 × 9.5 inches)
DL (4.3 × 8.7 inches)
C6 (4.5 × 6.4 inches)
|
Paper type
|
Plain bond paper
|
Weight
|
20 lb (75 g/m²) to 24 lb (90 g/m²)
|
Special Papers
Paper names
|
Ultra Premium Photo Paper Glossy Ultra Premium Glossy Photo Paper
Premium Photo Paper Semigloss Premium Semigloss Photo Paper
Photo Paper Glossy Glossy Photo Paper
|
Size
|
4 × 6 inches
Letter (8.5 × 11 inches)
|
Paper type
|
Special paper distributed by Epson
|
Paper names
|
Premium Photo Paper Glossy Premium Glossy Photo Paper
|
Size
|
4 × 6 inches
5 × 7 inches
8 × 10 inches
Letter (8.5 × 11 inches)
|
Paper type
|
Special paper distributed by Epson
|
Paper names
|
Bright White Paper
Premium Presentation Paper Matte Double-sided Epson Double-sided Matte Paper
Presentation Paper Matte Photo Quality Ink Jet Paper
Iron-on Cool Peel Transfer paper
Ultra Premium Photo Paper Luster Premium Luster Photo Paper
|
Size
|
Letter (8.5 × 11 inches)
|
Paper type
|
Special paper distributed by Epson
|
Paper names
|
Premium Presentation Paper Matte
Matte Paper Heavyweight
|
Size
|
8 × 10 inches
Letter (8.5 × 11 inches)
|
Paper type
|
Special paper distributed by Epson
|
Paper name
|
Photo Quality Self Adhesive Sheets
|
Size
|
A4 (8.3 × 11.7 inches)
|
Paper type
|
Special paper distributed by Epson
|
Note:
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH

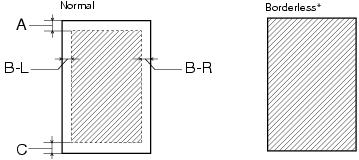

Printable Area
Single sheets
Envelopes
A:
|
The minimum top margin is 0.12 inches (3.0 mm).
|
B-L:
|
The minimum left margin is 0.12 inches (3.0 mm).
The minimum left margin is 0.20 inches (5.0 mm) for envelopes.
|
B-R:
|
The minimum right margin is 0.12 inches (3.0 mm).
The minimum right margin is 0.20 inches (5.0 mm) for envelopes.
|
C:
|
The minimum bottom margin is 0.12 inches (3.0 mm) for single sheets and index cards.
|
D
|
The minimum bottom margin is 0.78 inches (20 mm) for envelopes.
|
*
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note:
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.

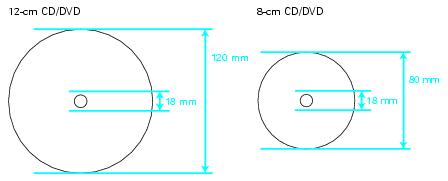

CDs or DVDs
If you print in the following areas of the disc, the disc or CD/DVD tray may get stained with ink:
Inner hub area
|
18 to 42 mm
|
Outer periphery area
|
117 to 120 mm for a 12-cm CD/DVD
77 to 80 mm for a 8-cm CD/DVD
|
Mechanical
Paper feed method
|
Friction
|
Paper path
|
Sheet feeder, top entry
|
Sheet feeder capacity
|
About 120 sheets at 24 lb (90 g/m²)
|
Dimensions
|
Storage
Width: 17.8 inches (453 mm)
Depth: 13.5 inches (343 mm)
Height: 7.6 inches (194 mm)
Printing
Width: 17.8 inches (453 mm)
Depth: 21.2 inches (538 mm)
Height 11.2 inches (285 mm)
|
Weight
|
Approx. 15.8 lb (7.15 kg) (without the ink cartridges)
|
Ink Cartridges
Black Ink Cartridge
Color
|
Black (77 or T077120, 78 or T078120)
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Freezing*: 3.2 °F (-16 °C)
|
Dimensions
|
Width: 0.5 inches (12.7 mm)
Depth: 2.7 inches (68.0 mm)
Height: 1.9 inches (47.0 mm)
|
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Color Ink Cartridges
Color
|
Cyan (77 or T077220, 78 or T078220)
Magenta (77 or T077320, 78 or T078320)
Yellow (77 or T077420, 78 or T078420)
Light Cyan (77 or T077520, 78 or T078520)
Light Magenta (77 or T077620, 78 or T078620)
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Freezing*: 3.2 °F (-16 °C)
|
Dimensions
|
Width: 0.5 inches (12.7 mm)
Depth: 2.9 inches (73.5 mm)
Height: 2.2 inches (55.3 mm)
|
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution:
To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson's warranty.
Do not use an ink cartridge if the date on the package has expired.
Note:
The ink cartridges packaged with your printer are partly used during initial setup. In order to produce high quality printouts, the print head in your printer will be fully charged with ink. This one-time process consumes a quantity of ink and subsequent cartridge sets will last for their full rated life.
Memory Card Slots
Compatible memory cards
|
CompactFlash
Memory Stick
Memory Stick PRO
Memory Stick Duo*
Memory Stick PRO Duo*
MagicGate Memory Stick
MagicGate Memory Stick Duo*
Microdrive
SD Memory Card
SDHC Memory Card
MultiMediaCard
miniSD card*
miniSDHC card*
microSD card*
microSDHC card*
xD-Picture Card
xD Picture Card Type M
xD-Picture Card Type H
|
Voltage Requirements
|
3.3 v
Maximum current is 500 mA
|
* Adapter required.
Memory Card Slot Compatibility
CF Type II card slot
|
Compatible with CF+ and CompactFlash Specification 3.0 cards
|
Memory Stick/Memory Stick PRO card slot
|
Compatible with Memory Stick Standard version 1.42-00 or Memory Stick Standard Memory Stick PRO Format Specifications version 1.02-00 cards
|
SD/MMC card slot
|
Compatible with SD Memory Card Specifications / PART1. Physical Layer Specification Version 2.0 cards and MultiMediaCard Standard Version 4.1 cards
|
xD-Picture card Slot
|
Compatible with xD-Picture card, Card Specification Version 1.20 Type M and Type H cards
|
Electrical
Rated voltage
|
100-120 V Model
|
220-240 V Model
|
Input voltage range
|
AC 90 to 132 V
|
AC 198 to 264 V
|
Rated frequency range
|
50 to 60 Hz
|
Input frequency range
|
49.5 to 60.5 Hz
|
Rated current
|
0.6 A (Max 1.1A)
|
0.3 A (Max 0.5 A)
|
Power consumption
|
ISO/IEC10561 Letter Pattern
|
Approx. 17 W
|
Sleep mode
|
Approx. 4.5 W
|
Approx. 5.0 W
|
Power off mode
|
Approx. 0.2 W
|
Approx. 0.4 W
|
Note:
Check the label on the back of the printer for the voltage information.
Environmental
Temperature
|
Operation: 50 to 95 °F (10 to 35 °C)
Storage: -4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
|
Humidity
|
Operation: 20 to 80% RH (without condensation)
Storage: 5 to 85% RH (without condensation)
|
Operating conditions
|
Ordinary office or home conditions
|
Standards and Approvals
Safety
|
UL 60950-1
CAN/CSA-22.2 No.60950-1
|
EMC
|
FCC part 15 Subpart B class B
CAN/CSA-CEI/IEC CISPR 22 Class B
|
Interfaces
USB 2.0 Hi-Speed (Device Class for computers)
|
Interface type
|
Based on Universal Serial Bus Specifications Revision 2.0
|
Electrical Standard
|
480Mbps (High Speed Device)
|
Connector type
|
One Type B port
|
USB 2.0 Hi-Speed (Mass Storage Class for external storage devices)
|
Bluetooth Ver. 2.0+EDR (Option)
|
IrDA Ver. 1.3
|
Safety Instructions
Important Safety Instructions
Read all of the instructions in this section before using the printer. Also, be sure to follow all warnings and instructions marked on the printer.
Setting Up the Printer
Observe the following when setting up the printer:
- Do not block or cover the vents and openings in the printer.
- Use only the type of power source indicated on the printer's label.
- Use only the power cord that comes with the printer. Use of another cord may result in fire or electric shock.
- The printer's power cord is for use with the printer only. Use with other equipment may result in fire or electric shock.
- Be sure your AC power cord meets the relevant local safety standard.
- Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.
- Avoid electrical outlets controlled by wall switches or automatic timers.
- Keep the entire computer system away from potential sources of electromagnetic interference, such as loudspeakers or the base units of cordless telephones.
- Do not use a damaged or frayed power cord.
- If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
- Never disassemble, modify, or attempt to repair the power cord, printer, or options by yourself.
- Unplug the printer and refer servicing to qualified service personnel under the following conditions:
The power cord or plug is damaged; liquid has entered the printer; the printer has been dropped or the casing damaged; the printer does not operate normally or exhibits a distinct change in performance.
- When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.
- Place the power cord in a position that avoids abrasions, cuts, fraying, crimping, and kinking. Do not place objects on top of the power cord and do not allow the power cord to be stepped on or run over. Be particularly careful to keep the power cord straight at the ends.
Choosing a Place for the Printer
Observe the following when choosing a place for the printer:
- Place the printer on a flat, stable surface that extends beyond the base of the printer in all directions. If you place the printer by the wall, leave more than 3.9 inches (10 cm) between the back of the printer and the wall. The printer will not operate properly if it is tilted at an angle.
- When storing or transporting the printer, do not tilt it, stand it on its side, or turn it upside down. Otherwise, ink may leak from the cartridges.
- Leave enough space in front of the printer for the paper to be fully ejected.
- Allow space behind the printer for the cables, and space above the printer so that you can fully raise the document cover.
- Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in locations subject to shocks, vibrations, high temperature or humidity, direct sunlight, strong light sources, or rapid changes in temperature or humidity.
- Leave enough room around the printer to allow for sufficient ventilation.
- Place the printer near a wall outlet where the plug can be easily unplugged.
- Place the printer close enough to the computer for the USB cable to reach it easily.
Using the Printer
Observe the following when using the printer:
- Do not insert objects through the slots or into an opening in the printer, as they may touch dangerous voltage points or short out parts. Beware of electrical shock hazards.
- Do not to spill liquid on the printer.
- Do not put your hand inside the printer or touch the ink cartridges during printing.
- Do not use aerosol products that contain flammable gases inside or around this product. Doing so may cause fire.
- Do not move the print head by hand; otherwise, you may damage the printer.
- Always turn the printer off using the
On button. When this button is pressed, the message "Turning off..." appears on the LCD screen. Do not unplug the printer or turn off the power to the outlet until the message disappears.
- Before transporting the printer, make sure that the print head is in the home (far right) position and the ink cartridges are in place.
- Leave the ink cartridges installed. Removing the cartridges can dehydrate the print head and may prevent the printer from printing.
- Turn off and unplug the printer before cleaning. Clean with a damp cloth only.
- Do not use the printer with wet hands.
- If you are not going to use the printer for a long period of time, unplug it from the wall outlet.
Handling Ink Cartridges
Observe the following when handling the ink cartridges:
- Keep ink cartridges out of the reach of children. Do not allow children to drink from or handle the cartridges.
- Do not shake ink cartridges after opening their packages; this can cause leakage.
- Be careful when you handle used ink cartridges, as there may be some ink remaining around the ink supply port. If ink gets on your skin, wash the area thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water. If discomfort or vision problems remain after a thorough flushing, see a doctor immediately.
- Do not remove or tear the label on the cartridge; this can cause leakage.
- Install the ink cartridge immediately after you remove it from its package. Leaving the cartridge unpacked for a long time before use can result in reduced print quality.
- Do not use an ink cartridge beyond the date printed on the package. For best results, use up the ink cartridges within six months of first installing them.
- Do not dismantle ink cartridges or try to refill them. This could damage the print head.
- After bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature for at least three hours before using it.
- Store ink cartridges in a cool, dark place.
- Do not touch the green IC chip on the side of the cartridge. Doing so may prevent normal operation and printing.
- The IC chip on this ink cartridge retains a variety of cartridge related-information such as the ink cartridge status, so that the cartridge may be removed and reinserted freely. However, each time the cartridge is inserted, some ink is consumed because the printer automatically performs a reliability check.
- If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust, and store it in the same environment as the printer. A valve in the ink supply port makes covers or plugs unnecessary, but the ink may stain items that come into contact with this area of the cartridge. Do not touch the ink supply port or the surrounding area.
- Store ink cartridges with their labels facing upward. Do not store cartridges upside down.
Using Memory Cards
- Do not remove a memory card or turn off the printer while the memory card light is flashing.
- The methods for using memory cards vary according to card type. Be sure to refer to the documentation packaged with your memory card for details.
Using the LCD Screen
- The LCD screen may contain a few small bright or dark spots. These are normal and do not mean that the LCD screen is damaged in any way.
- Only use a dry, soft cloth to clean the LCD screen. Do not use liquid or chemical cleansers.
- If the LCD screen is damaged, contact Epson as described in Where to Get Help. If the liquid crystal solution gets on your hands, wash them thoroughly with soap and water. If the liquid crystal solution gets into your eyes, flush them immediately with water. If discomfort or vision problems remain after a thorough flushing, see a doctor immediately.
Using the Optional Bluetooth Photo Print Adapter
Refer to the Bluetooth Photo Print Adapter's documentation for the safety instructions.
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume. Contact your legal advisor for any questions regarding copyright law.
Trademarks
Epson, Epson Stylus, and MicroPiezo are registered trademarks and Claria, Exceed Your Vision, Epson Web-To-Page, USB DIRECT-PRINT, and the USB DIRECT-PRINT logo are trademarks of Seiko Epson Corporation.
RPM and BorderFree are registered trademarks; PhotoEnhance is a trademark; and Epson CreativeZone and Epson PhotoCenter are service marks of Epson America, Inc.
SD is a trademark.
Memory Stick, Memory Stick Duo, Memory Stick PRO, and Memory Stick PRO Duo are trademarks of Sony Corporation.
xD-Picture Card is a trademark of Fuji Photo Film Co., Ltd.
Microdrive is a trademark of IBM Computer Corporation
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
© 2006 by Epson America, Inc.
7/06
