Specifications
Printing
|
Printing method
|
On-demand ink jet
|
|
Nozzle configuration
|
Black: 48 nozzles
Color: 45 nozzles (15 each: cyan, magenta, yellow)
|
|
Print direction
|
Bidirectional with logic seeking
|
|
Input buffer
|
12KB
|
Paper
Note: Poor quality paper may reduce print quality and cause paper jams or other problems. If you encounter problems, switch to a higher grade paper.
Do not load curled or folded paper.
Avoid extremes in temperature or humidity when printing. Optimum printing temperature ranges from 55 to 77 °F, and optimum humidity ranges from 40 to 60% RH.
Store EPSON Self-Adhesive Sheets under the following conditions: 59 to 86 °F, and 20 to 60% RH.
Plain Paper, All-Purpose Glossy Paper, Premium Bright White Paper, Photo Quality and High Quality Ink Jet Paper
|
Size
|
Letter (8.5 x 11 inches)
Half letter (5.5 x 8.5 inches)
Legal (8.5 x 14 inches)
Executive (7.25 x 10.5 inches)
A4 (8.3 x 11.7 inches)
A5 (5.8 x 8.27 inches)
User-defined:
Width: 3.5 to 9.5 inches
Length: 3.5 to 44 inches
|
|
Paper types
|
Plain bond paper or special paper distributed by EPSON
|
|
Thickness (for plain bond paper)
|
0.003 to 0.004 inch
|
|
Weight (for plain bond paper)
|
17 to 24 lb (64 to 90 g/m2)
|
Envelopes
|
Size
|
No. 10 (4.13 x 9.5 inches)
DL (4.33 x 8.7 inches)
C6 (4.49 x 6.38 inches)
132 x 220 mm (5.2 x 8.7 inches)
|
|
Paper types
|
Plain bond paper, airmail
|
|
Thickness
|
0.006 to 0.02 inch
|
|
Weight
|
12 to 20 lb (45 to 75 g/m2)
|
Glossy Photo Paper and Photo Paper
|
Size
|
Letter (8.5 x 11 inches)
4 x 6 inches
Panoramic (8.3 x 23.4 inches)
A4 (8.3 x 11.7 inches)
|
|
Paper types
|
Special paper distributed by EPSON
|
Ink Jet Cards
|
Size
|
A6 (4.1 x 5.8 inches)
|
|
Paper types
|
Special paper distributed by EPSON
|
Transparencies, Photo Quality Glossy Paper, and Glossy Photo Greeting Cards
|
Size
|
Letter (8.5 x 11 inches)
|
|
Paper types
|
Special paper distributed by EPSON
|
Self Adhesive Sheets
|
Size
|
A4 (8.3 x 11.7 inches)
|
|
Paper types
|
Special paper distributed by EPSON
|
Photo Stickers
|
Size
|
A6 (4.1 x 5.8 inches) with 16 frames
|
|
Paper types
|
Special paper distributed by EPSON
|
Matte Paper Heavyweight and Double-Sided Matte Paper
|
Size
|
Letter (8.5 x 11 inches)
|
|
Paper types
|
Special paper distributed by EPSON
|

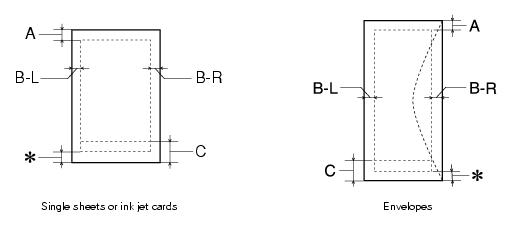

Printable Area
|
Minimum top margin (A)
|
0.12 inch (3.0 mm)
|
|
Minimum left margin (B-L)
|
0.12 inch (3.0 mm)
|
|
Minimum right margin (B-R)
|
0.12 inch (3.0 mm)
|
|
Minimum bottom margin (C)
|
0.49 inch (12.5 mm)
|
Note: You can extend the minimum bottom margin to 0.12" (3 mm) using the Minimize Margins feature, however print quality may decline in the expanded area. Before printing large jobs using an extended margin setting, print a single sheet to confirm printout quality.
Ink Cartridges
|
Specification
|
Black cartridge (T036)
|
Color cartridge (T037)
|
|
Color(s)
|
Black
|
Cyan, Magenta, Yellow
|
|
Print capacity*
|
330 pages using ISO Letter Pattern 10561, 220 pages at 5% in calculation, except for the initial ink cartridge
|
180 pages, 5% each CMY (total 15%) in calculation, except for initial ink cartridge
|
|
Cartridge life
|
Within 6 months after opening package at 77 °F (25 °C)
|
|
Storage temperature
|
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
|
|
Transit temperature
|
-22 to 140 °F (-30 to 60 °C)
1 month at 104 °F (40 °C); 120 hours at 140 °F (60 °C)
|
|
Freezing temperature**
|
3.2 °F (-16 °C)
|
-0.4 °F (-18 °C)
|
|
Dimensions
(W x D x H)
|
0.78 x 2.08 x 1.52 inches
(19.8 x 52.7 x 38.5 mm)
|
1.69 x 2.08 x 1.52 inches
(42.9 x 52.7 x 38.5 mm)
|
* The figure given is based on continuous printing after ink replacement. The actual print capacity may vary.
** Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution: To ensure good results, use genuine EPSON cartridges and do not refill them. Other products may cause damage to your printer not covered by EPSON's warranties.
Don't use an ink cartridge if the date on the package has expired.
Mechanical
|
Paper feed method
|
Friction
|
|
Paper path
|
Sheet feeder, top entry
|
|
Sheet feeder capacity
|
100 sheets of 17 lb (65.8 g/m2) paper
|
|
Dimensions
|
Storage
Width: 16.7 inches (423 mm)
Depth: 9.0 inches (229 mm)
Height: 6.8 inches (172 mm)
Printing
Width: 16.7 inches (423 mm)
Depth: 18.1 inches (459 mm)
Height: 10.9 inches (277 mm)
|
|
Weight
|
5.47 lb (2.48 kg) without the ink cartridges
|
Electrical
|
Input voltage range
|
90 to 264 V
|
|
Rated frequency range
|
50 to 60 Hz
|
|
Input frequency range
|
49.5 to 60.5 Hz
|
|
Rated current
|
0.4 to 0.2 A
|
|
Power consumption
|
Approximately 19 W (ISO10561 Letter Pattern)
Approximately 3.0 W Sleep mode
Approximately 2.7 W Power Off mode
|
Note: Check the label on the back of the printer for your printer's voltage.
Environmental
|
Temperature
|
Operation: 50 to 95 °F (10 to 35 °C)
Storage**: -4 to 140 °F (-20 to 60 °C)
1 month at 104 °F (40 °C)
Transit**: -4 to 140 °F (-20 to 60 °C)
120 hours at 140 °F (60 °C)
|
|
Humidity (without condensation)
|
Operation: 20 to 80% RH
Storage**: 5 to 85% RH
|
Note: Stored in shipping container
Safety Approvals
|
Safety standards
|
UL 1950, CSA C22.2 No. 950
|
|
EMC
|
FCC part 15 subpart B class B
CSA C108.8 Class B
|
