Loading Paper
Single Sheets
- Open the output tray and its extension.
- Fan a stack of paper and place it against the right edge of the sheet feeder, behind the tab. Don't push the paper in.
- Press the locking tab, and slide the left edge guide against the paper (but not too tightly).
Follow these guidelines when loading paper:
- Don't load paper above the arrow on the left edge guide. Make sure the paper is under the tabs on the left and right edge guides.
- Load the printable side face-up. It's often brighter or whiter than the other side.
- Always load the short edge first, even when printing in landscape mode.
- Load letterhead or preprinted paper into the printer top edge first.
- If you're using special media, follow the instructions that came with the media.
Envelopes
- Open the output tray and its extension.

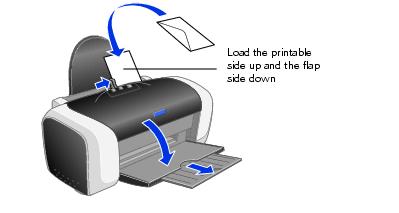

- Load up to 10 envelopes at a time, flap edge left, printable side up, against the right edge of the sheet feeder, behind the tab.
- Press the locking tab and slide the left edge guide against the envelopes (but not too tightly).
Note: For best results, press each envelope flat before loading, or load one envelope at a time.
Select the following settings when printing on envelopes:
- Plain paper as the paper Type setting
- The correct envelope size as the Size setting
- Landscape as the Orientation setting
For instructions on selecting these settings, see Printing.
Special Papers
Epson® offers the following special papers for the Epson Stylus C66:
|
Paper name
|
Size
|
Part number
|
|
Epson Premium Bright White Paper
|
Letter (8.5 x 11 inches)
|
S041586
|
|
Epson Photo Quality Ink Jet Paper
|
Letter (8.5 x 11 inches)
|
S041062
|
|
A4 (8.3 x 11.7 inches)
|
S041061
|
|
Legal (8.5 x 14 inches)
|
S041067
|
|
Epson Photo Quality Ink Jet Cards
|
A6 (4.1 x 5.8 inches)
|
S041054
|
|
Epson DURABrite Ink Glossy Photo Paper
|
Letter (8.5 x 11 inches)
|
S041731
|
|
4 x 6 inches
|
S041734
|
|
Epson Glossy Photo Paper
Epson Photo Paper
|
4 x 6 inches
|
S041134
S041671
S041458
S041809
|
|
Letter (8.5 x 11 inches)
|
S041141 S041649
S041271 S041272
|
|
A4 (8.3 x 11.7 inches)
|
S041140
|
|
Epson All Purpose Glossy Paper
|
Letter (8.5 x 11 inches)
|
S041654
|
|
Epson Matte Paper Heavyweight
|
Letter (8.5 x 11 inches)
|
S041257
|
|
Epson Double-Sided Matte Paper
|
Letter (8.5 x 11 inches)
|
S041568
|
|
PremierArttm Matte Scrapbook Photo Paper
|
Letter (8.5 x 11 inches)
|
SCR1002
|
|
Epson Premium Semigloss Photo Paper
|
Letter (8.5 x 11 inches)
|
S041331
|
|
Epson Ink Jet Transparencies
|
Letter (8.5 x 11 inches)
|
S041064
|
* The availability of paper types and sizes varies by location.
To order Epson ink cartridges, paper, and other printing media, contact your dealer or call Epson at (800) 873-7766 or visit the Epson Storesm at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.
When loading Epson ink jet papers, follow these capacity guidelines:
|
Paper type
|
Loading capacity
|
|
Premium Bright White Paper
|
120 sheets
|
|
Photo Quality Ink Jet Paper
|
80 sheets
|
|
Photo Quality Ink Jet Cards
|
30 cards with a support sheet beneath the stack
|
|
Glossy Photo Paper or Photo Paper
All Purpose Glossy Paper
Premium Semigloss Photo Paper
DURABrite Ink Glossy Photo Paper
|
20 sheets
|
|
Matte Paper Heavyweight
|
20 sheets with a support sheet beneath the stack
|
|
Ink Jet Transparencies
|
20 sheets with a sheet of plain paper beneath the stack
|
|
Double-Sided Matte Paper
PremierArttm Matte Scrapbook Photo Paper
|
1 sheet
|
