Specifications


Printing

Printing method
On-demand ink jet
Nozzle configuration
Black: 90 nozzles
Color: 87 nozzles (29 each cartridge: cyan, magenta, yellow)
Print direction
Bidirectional with logic seeking

Paper

Note:
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.

Single sheets

Size
A4 (8.3  11.7 inches)
A5 (5.8  8.3 inches)
A6 (4.1  5.8 inches)
Letter (8.5  11 inches)
Legal (8.5  14 inches)
Half-letter (5.5  8.5 inches)
Executive (7.3  10.5 inches)
4  6 inches
5  7 inches
3.5  5 inches
8  10 inches
User Defined up to 8.5  44 inches
Paper type
Plain bond paper or special paper distributed by Epson
Thickness
0.003 to 0.004 inch (0.08 to 0.11 mm)
Weight (for plain bond paper)
17 lb (64 g/m) to 24 lb (90 g/m)

Envelopes

Size
No. 10 (4.1  9.5 inches)
DL (4.3  8.7 inches)
C6 (4.5  6.4 inches)
Paper type
Plain bond paper or air mail paper
Weight
12 lb (45 g/m) to 20 lb (75 g/m)

Note:
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.

Do not load curled or folded paper.

Use paper only under these conditions:
Temperature: 59 to 77 F (15 to 25 C)
Humidity: 40 to 60% RH

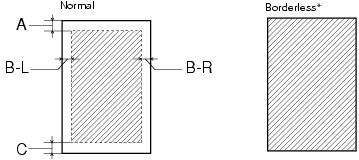

Printable Area

Single sheets or cards

Envelopes

A:
The minimum top margin is 0.12" (3.0 mm).
B-L:
The minimum left margin is 0.12" (3.0 mm).
B-R:
The minimum right margin is 0.12" (3.0 mm).
C:
The minimum bottom margin is 0.12" (3.0 mm).
D
The minimum bottom margin is 0.78" (20 mm) for envelopes.
*
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.

Note:
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.

Mechanical

Paper feed method
Friction
Paper path
Automatic sheet feeder, top entry
Sheet feeder capacity
About 100 sheets at 20 lb (90 g/m)
Dimensions
Storage
Width: 17.6 inches (447 mm)
Depth: 9.4 inches (240 mm)
Height: 7.7 inches (195 mm)
Printing
Width: 17.6 inches (447 mm)
Depth: 17.1 inches (436 mm)
Height 12.2 inches (309 mm)
Weight
8.6 lb (3.9 kg), without ink cartridges

Ink Cartridges

Black Ink Cartridge - Standard Capacity (T0601)

Color
Black
Cartridge life
6 months at 77 F (25 C) after opening the package
Temperature
Storage:
-4 to 104 F (-20 to 40 C)
1 month at 104 F (40 C)
Transit:
-22 to 122 F (-30 to 50 C)
10 days at 122 F (50 C)
Freezing*: 3.2 F (-16 C)
Dimensions
Width: 0.5 inches (12.7 mm)
Depth: 2.9 inches (73.5 mm)
Height: 2.2 inches (55.3 mm)

Color Ink Cartridges (T0602 - Cyan, T0603 - Magenta, and T0604 - Yellow)

Color
Cyan, magenta, and yellow
Cartridge life
6 months at 77 F (25 C) after opening the package
Temperature
Storage:
-4 to 104 F (-20 to 40 C)
1 month at 104 F (40 C)
Transit:
-22 to 122 F (-30 to 50 C)
10 days at 122 F (50 C)
Freezing*: 3.2 F (-16 C)
Dimensions
Width: 0.5 inches (12.7 mm)
Depth: 2.9 inches (73.5 mm)
Height: 2.2 inches (55.3 mm)

* Ink thaws and is usable after approximately 3 hours at 77 F (25 C).

Caution: To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson's warranty.

Do not use an ink cartridge if the date on the package has expired.

Electrical


100 - 120 V Model
220 - 240 V Model
Rated voltage
AC 100 -120 V
AC 220 - 240 V
Input voltage range
90- 132 V
198-264 V
Rated frequency range
50 to 60 Hz
Input frequency range
49.5 to 60.5 Hz
Rated current
0.4 A (0.7 A max)
0.2 A (0.4 A max)
Power consumption
Approx. 11 W (ISO10561 Letter Pattern)
Approx. 2.0 W in Sleep Mode
Approx. 0.3W in Power Off Mode
Approx. 11 W (ISO10561 Letter Pattern)
Approx. 2.5 W in Sleep Mode
Approx. 0.4W in Power Off Mode

Note: Check the label on the back of the printer for the voltage information.

Environmental

Temperature
Operation: 50 to 95 F (10 to 35 C)
Storage: -4 to 140 F (-20 to 60 C)
1 month at 104 F (40 C)
Transit:* -4 to 140 F (-20 to 60 C)
120 hours at 140 F (60 C)
Humidity
Operation: 20 to 80% RH**
Storage*: 5 to 85% RH**

* Stored in shipping container

** Without condensation

Standards and Approvals

Safety
UL 60950
CSA C22.2 No. 60950
EMC
FCC part 15 Subpart B class B
CSA C108.8 Class B

USB Interface

Standard
Based on Universal Serial Bus Specifications Revision 1.1, Universal Serial Bus Device Class Definition for Printing Devices Version 1.1
Bit rate
12 Mbps (Full speed device)
Data encoding
NRZI
Adaptable connector
USB Series B
Recommended cable length
Under 6 feet
