Specifications
Printing
Printing method
|
On-demand ink jet
|
Nozzle configuration
|
Black: 180 nozzles
Color: 177 nozzles (59 each cartridge: cyan, magenta, yellow)
|
Print direction
|
Bidirectional with logic seeking
|
Control code
|
ESC/P® raster
EPSON Remote
|
Paper
Note: Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot guarantee the quality of any non-EPSON brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Single sheets
Size
|
A4 (8.3 × 11.7 inches)
A5 (5.8 × 8.3 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Half-letter (5.5 × 8.5 inches)
Executive (7.3 × 10.5 inches)
4 × 6 inches
5 × 7 inches
3.5 × 5 inches
8 × 10 inches
User Defined up to 8.3 × 44 inches
|
Paper type
|
Plain bond paper or special paper distributed by EPSON
|
Thickness
|
0.003 to 0.004 inch (0.08 to 0.11 mm)
|
Weight (for plain bond paper)
|
17 lb (64 g/m²) to 24 lb (90 g/m²)
|
Envelopes
Size
|
No. 10 (4.1 × 9.5 inches)
DL (4.3 × 8.7 inches)
C6 (4.5 × 6.4 inches)
|
Paper type
|
Plain bond paper or air mail paper
|
Weight
|
12 lb (45 g/m²) to 20 lb (75 g/m²)
|
Premium Bright White Paper
Size
|
Letter (8.5 × 11 inches)
|
Paper type
|
Special paper distributed by EPSON
|
Photo Quality Ink Jet Paper
Size
|
Letter (8.5 × 11 inches)
A4 (8.3 × 11.7 inches)
Legal (8.5 × 14 inches)
|
Paper type
|
Special paper distributed by EPSON
|
Photo Quality Ink Jet Cards
Size
|
A6 (4.1 × 5.8 inches)
|
Paper type
|
Special paper distributed by EPSON
|
Photo Paper and Glossy Photo Paper
Size
|
Letter (8.5 × 11 inches)
A4 (8.3 × 11.7 inches)
4 × 6 inches
|
Paper type
|
Special paper distributed by EPSON
|
Matte Paper Heavyweight, Premium Semigloss Photo Paper, Ink Jet Transparencies, Double-Sided Matte Paper
Size
|
Letter (8.5 × 11 inches)
|
Paper type
|
Special paper distributed by EPSON
|
Note: Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH

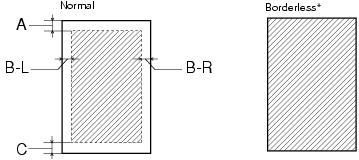

Printable Area
Single sheets or cards
Envelopes
A:
|
The minimum top margin is 0.12" (3.0 mm).
|
B-L:
|
The minimum left margin is 0.12" (3.0 mm).
|
B-R:
|
The minimum right margin is 0.12" (3.0 mm).
|
C:
|
The minimum bottom margin is 0.12" (3.0 mm).
|
D
|
The minimum bottom margin is 0.78" (20 mm) for envelopes
|
*
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note: Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Mechanical
Paper feed method
|
Friction
|
Paper path
|
Sheet feeder, top entry
|
Sheet feeder capacity
|
About 120 sheets at 20 lb (90 g/m²)
|
Dimensions
|
Storage
Width: 18.1 inches (460 mm)
Depth: 9.5 inches (242 mm)
Height: 7.8 inches (198 mm)
Printing
Width: 18.1 inches (460 mm)
Depth: 17.2 inches (437 mm)
Height 12.1 inches (308 mm)
|
Weight
|
9.3 lb (4.2 kg) without the ink cartridges
|
Ink Cartridges
Black Ink Cartridge - High Capacity (T043120)
Color
|
Black
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:
-22 to 122 °F (-30 to 50 °C)
10 days at 122 °F (50 °C)
Freezing:* 3.2 °F (-16 °C)
|
Dimensions
|
Width: 0.9 inches (22 mm)
Depth: 2.9 inches (73.5 mm)
Height: 2.2 inches (55.3 mm)
|
Black Ink Cartridge - Standard Capacity (T044120)
Color
|
Black
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:
-22 to 122 °F (-30 to 50 °C)
10 days at 122 °F (50 °C)
Freezing:* 3.2 °F (-16 °C)
|
Dimensions
|
Width: 0.5 inches (12.7 mm)
Depth: 2.9 inches (73.5 mm)
Height: 2.2 inches (55.3 mm)
|
Color Ink Cartridges (T044220 - Cyan, T044320 - Magenta, and T044420 - Yellow)
Color
|
Cyan, magenta, and yellow
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:
-22 to 122 °F (-30 to 50 °C)
10 days at 122 °F (50 °C)
Freezing:* 3.2 °F (-16 °C)
|
Dimensions
|
Width: 0.5 inches (12.7 mm)
Depth: 2.9 inches (73.5 mm)
Height: 2.2 inches (55.3 mm)
|
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution: To ensure good results, use genuine EPSON ink cartridges and do not refill them. Other products may cause damage to your printer not covered by EPSON's warranty.
Do not use an ink cartridge if the date on the package has expired.
Electrical
Rated voltage
|
120V or 220 V
|
Input voltage range
|
90 to 266V
|
Rated frequency range
|
50 to 60 Hz
|
Input frequency range
|
49.5 to 60.5 Hz
|
Rated current
|
0.2 A (0.4 A max)
|
Power consumption
|
Approx. 19 W (ISO10561 Letter pattern)
Approx. 4.5 W in sleep mode
Approx. 0.8 W in power-off mode
|
Note: Check the label on the back of the printer for the voltage information.
Environmental
Temperature
|
Operation: 50 to 95 °F (10 to 35 °C)
Storage: -4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:* -4 to 140 °F (-20 to 60 °C)
120 hours at 140 °F (60 °C)
|
Humidity
|
Operation: 20 to 80% RH
Storage:*, ** 5 to 85% RH
|
* Stored in shipping container
** Without condensation
Standards and Approvals
Safety
|
UL 60950
CSA C22.2 No. 60950
|
EMC
|
FCC part 15 Subpart B class B
CSA C108.8 Class B
|
