Replacing an Ink Cartridge

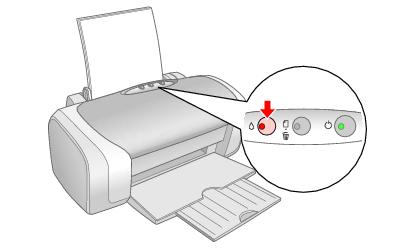

You'll also see a message on your screen when you print telling you which cartridge is low or empty.

When a cartridge is more than six months old, you may need to replace it if printouts don't look their best. If the quality doesn't improve after cleaning and aligning the print head, you can replace the cartridge even if the red ink light is off.

Checking the Ink Supply

To check your ink supply, do the following:

Purchasing Ink Cartridges

Use these Epson ink cartridges within six months of installing them and before the expiration date on the package.

Ink cartridge
Part number
Black
T0601
Cyan
T0602
Magenta
T0603
Yellow
T0604

To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson's warranty.

You can purchase genuine Epson ink and paper from an authorized Epson reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for reseller referral.

Ink Cartridge Precautions

Warning:
Keep ink cartridges out of the reach of children.

If ink gets on your hands, wash them thoroughly with soap and water. If ink gets in your eyes, flush them immediately with water.

Caution:
Don't remove the cartridge label, or ink will leak.

Don't remove the green IC chip from the cartridge. Installing a cartridge without an IC chip can damage the printer. Avoid touching the green IC chip, as this can damage the ink cartridge.

If you remove an ink cartridge temporarily, protect the ink supply port on the bottom of the cartridge from dirt and dust. Place it in a small box, or, if you have the original packaging, return it to its own box.

Store ink cartridges in the same environment as the printer. Stand the cartridges upright; the label identifying the color should be on top.

Note:
You cannot continue printing with one ink cartridge empty, even if the other cartridges still contain ink. Before printing, replace the empty cartridge.

Removing and Installing Ink Cartridges

Be sure you have a new ink cartridge before you begin. Once you start replacing a cartridge, you must complete all the steps in one session.

Caution:
Leave the empty cartridge installed until you have obtained a replacement, or the ink remaining in the print head nozzles may dry out. To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson's warranty.

  1. Make sure the printer is turned on. (The green power light should be on, but not flashing.) Then open the printer cover.
  2. Press and release the ink button.

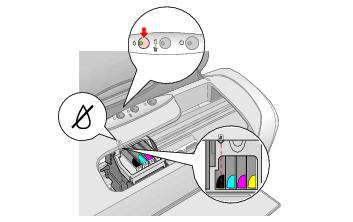

  3. The print head moves to the left, and the cartridge that needs to be replaced stops under the ink out mark. The power light begins to flash.



    Note:
    Don't hold down the ink button for more than 2 seconds, or the printer will start to clean the print head.

    Caution:
    To avoid damaging the printer, never move the print head by hand.

  4. Press the ink button again.
    • If more than one cartridge is empty, the next cartridge moves under the ink out mark.
    • If all the empty cartridges have been identified, the print head moves to the ink cartridge replacement position.
    • If you are replacing a cartridge before it is low or empty, the print head moves directly to the ink cartridge replacement position.

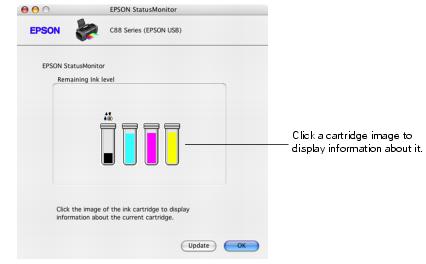

    • Note: You can also use the Status Monitor to find out which cartridge is out of ink. See Checking the Ink Supply for more information.

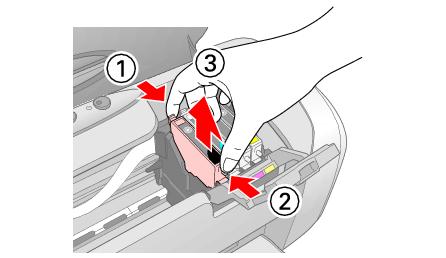

  5. Open the cartridge cover. Squeeze the back tab of the empty/low cartridge as you lift it out of the printer. Don't take the used cartridge apart or try to refill it.


  6. Warning: If ink gets on your hands, wash them thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water.

  7. Before you remove the new cartridge from its package, shake it four or five times. Then remove it from the package.


  8. Caution:
    Do not touch the green IC chip on the side of the cartridge. This can damage the ink cartridge.

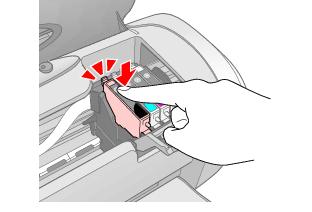

  9. Lower the new ink cartridge into the holder. Push down gently until the cartridge is firmly seated.


  10. If you need to replace other ink cartridges, repeat steps 5 and 6 before continuing with step 8.
  11. Close the cartridge cover.
  12. Close the printer cover and press the ink button. The printer begins charging the ink delivery system.


  13. The green  power light flashes and the printer makes noise. Charging takes about half a minute. When it's finished, the green  power light stops flashing and stays on, and the red light goes out.

    Caution:
    Never turn off the printer while the green  power light is flashing, unless the printer hasn't moved or made noise for more than 5 minutes.
