Copier

Using the Optional Automatic Document Feeder

Loading paper into the Automatic Document Feeder
Loading documents manually

The optional Automatic Document Feeder can be used to make copies of multiple pages automatically. Even with the Automatic Document Feeder mounted, you can still make single copies using the Document table.

Loading paper into the Automatic Document Feeder

The Automatic Document Feeder can automatically load up to 20 sheets of the following paper sizes (based on a paper weight of 17lbs and stack thickness of 4.0 mm or less):

Checks	83 x 127 mm (3.5 x 5 inches)
B5	182 x 257 mm (7.17 x 10.1 inches)
A4	210 x 297 mm (8.27 x 11.69 inches)
Letter	215.9 x 279.4 mm (8.5 x 11 inches)
Legal	215.9 x 355.6 mm (8.5 x 14 inches)

Note:

When you are using the Automatic Document Feeder, the number of Copies will be automatically set to one even if you have a multi-page original document. You cannot change the Copies setting.

Follow the steps below to load paper into the Automatic Document Feeder.

Note:

Make sure no dust is on the document table when using the Automatic Document Feeder. Dust on the document table near the scan carriage home position may result in vertical lines on copied images. Also make sure that there are no documents left on the Automatic Document Feeder.

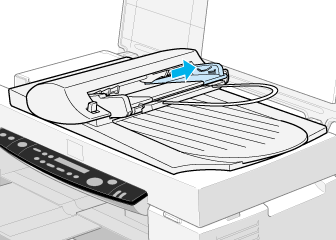

Slide the right edge guide all the way to the right.

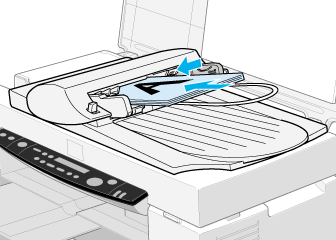

Insert the paper stack into the Automatic Document Feeder until it meets resistance. Make sure that the side you want to scan is facing up. Then move the right edge guide so it is flush with the right edge of your paper.

Documents are output to the lower tray after copying is finished.

[Top]

Loading documents manually

You can load documents manually even when the Automatic Document Feeder is installed.

Lift the Automatic Document Feeder and place the document on the document table. Then lower the Automatic Document Feeder and scan the document.

Note:

Opening the Automatic Document Feeder or its cover while it is operating results in an option error and paper feeding will stop.

Always close the Automatic Document Feeder and its cover before copying. If you are copying thick material or documents of more than 2cm in height, the Automatic Document Feeder can be left in the upright position.

When copying thin documents, you may see an impression of the underside of the Automatic Document Feeder in your copies. If this happens, use the document cover.
