Laser Optical Path

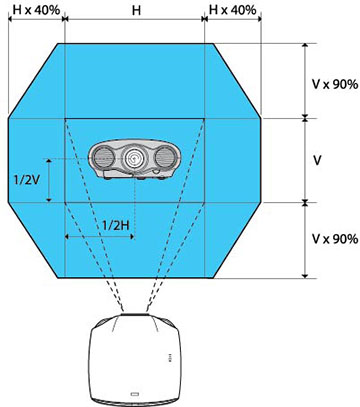

When using the Lens Shift function, the laser light from the projection lens is diffused within the following range:



When Lens Shift is at the maximum vertical position: 32° from the center of the lens

When Lens Shift is at the maximum horizontal position: 34° from the center of the lens
