Transferring Settings From a USB Flash Drive

After saving projector settings to a USB flash drive, you can transfer them to another projector of the same model.
Note: Make sure the USB flash drive contains only a single settings transfer from another projector of the same model. The settings are contained in a file called pjconfdata.bin. If the drive contains other files, the transfer may not complete correctly.

Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have to repeat your adjustments.

  1. Turn off the projector using the power switch.

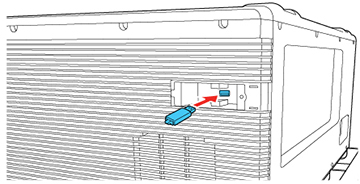

  2. Insert the flash drive into the wireless LAN module port.


    Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly.
  3. Press and hold the Menu button on the control panel or remote control as you turn on the power switch.


  4. When the On/Standby and Status lights are blue, and the Laser and Temp lights are orange, release the Menu button.
    The lights flash to indicate that settings are transferring to the projector. When the lights stop flashing, the On/Standby light turns blue and the projector enters standby mode.
    Caution:
    Do not unplug the power cord, turn off the power switch, or remove the flash drive while the lights are flashing. This could damage the projector.
  5. Once the projector enters standby mode, remove the flash drive.
