Correcting Image Shape with Point Correction

You can use the projector's Point Correction feature to fine-tune the image shape using points on a grid. This is useful for adjusting overlapping areas in multiple projected images that do not line up correctly.


Note: You can move the points on the grid between 0.5 to 32 pixels in any direction. If you see a 4K Enhancement message, select Yes to disable the 4K Enhancement feature.
  1. Turn on the projector and display an image.
    Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
    Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern button on the remote control.
  2. Press the Menu button.
  3. Select the Settings menu and press Enter.


  4. Select the Geometry Correction setting and press Enter.
  5. Select the Point Correction setting and press Enter.
    Note: If you see a confirmation message, press Enter.

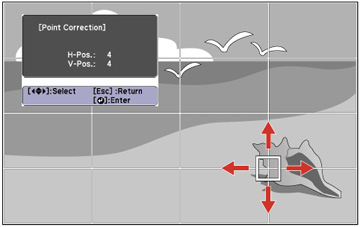

    You see this screen:


  6. Select the Point Correction setting and press Enter.
  7. Select the number of grid lines to display and press Enter.
    Note: If you need to change the color of the grid lines, select the Pattern Color setting and select a suitable color.
  8. Press the arrow buttons on the projector or remote control to move to the point on the grid that you want to adjust. Then press Enter. The box changes from a single line to a double-lined square.


  9. Press the arrow buttons to correct the image shape in all necessary directions.


    Note: You can press Enter to show or hide the image and grid to check the results.
  10. Press Esc to return to the previous screen and select another point to correct, if necessary.
  11. When you are finished, press the Menu button.
    Note: If necessary, you can fine-tune your image adjustments using the Quick Corner setting.
