Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer or BNC port, or a video source to the projector's 3G/HD/SD SDI port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select Communication On as the Standby Mode setting and Always On as the A/V Output setting in the projector's Extended menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.
  1. Make sure your computer or video source is connected to the projector's Computer, BNC, or 3G/HD/SD SDI port.

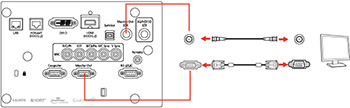

  2. Connect the external monitor's cable to your projector's Monitor Out (for computer or BNC sources) or Monitor Out SDI (for SDI sources) port.

    Note: If you do not see an image on the external monitor when projecting from a computer or BNC source, you may need to change the Monitor Out setting in the Extended menu.
