You

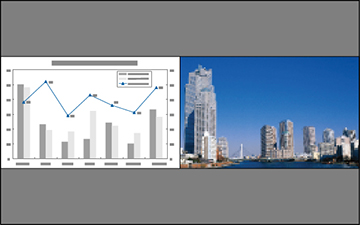

can use the split screen feature to simultaneously project two
images from different image sources next to each other.
You can control the split screen feature using the
remote control, the projector menus, or the interactive
function.
Note: While
you use the split screen feature, other projector features may not
be available and some settings may be automatically applied to both
images.
Note: You
cannot project from the same input source onto both sides (left and
right) of the screen. You also cannot use split screen with certain
input source combinations.
- Press the Split button on the remote control. The currently selected input source moves to the left side of the screen.

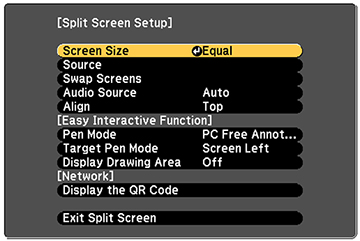

- Press the Menu button. You see this screen:
- To select an input source for the other image, select the Source setting, press Enter, select the input source, select Execute, and press Enter. (You can also change image sources, if necessary.)
- To switch the images, select the Swap Screens setting and press Enter.
-
To change the image sizes, select the
Screen Size setting, press
Enter, select a sizing option,
press Enter, and press
Menu to exit.
Note: Depending on the video input signals, the images may not appear at the same size even if you choose the Equal setting.
-
To choose the audio you want to hear, select
the Audio Source setting, press
Enter, select an audio option,
press Enter, and press
Menu to exit.
Note: Select Auto to hear audio from the largest screen or the left screen.
- To exit the split screen feature, press the Split or Esc button.
