Loading Paper for Documents in the Cassette
You can print documents on a variety of paper types and sizes.
Close the paper stopper and output tray, if necessary.
Pull out the paper cassette
and remove the paper cassette cover
Slide the edge guides outward.
If you are using legal-size paper or larger,

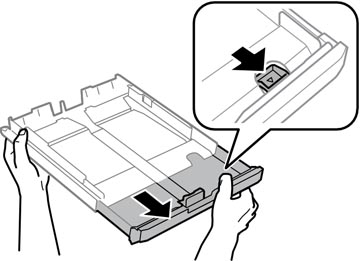

squeeze the tab and extend the paper cassette

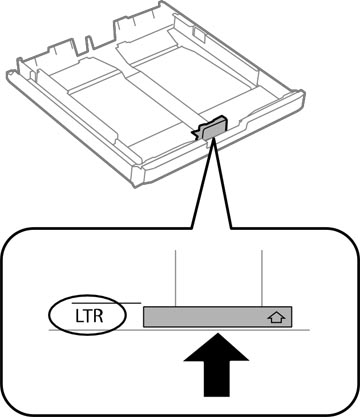

Slide the edge guide to your paper size.
Load a stack of paper, printable side down, against the edge guide as shown.
Make sure the paper is loaded against the edge guide and not sticking out from the end of the cassette.

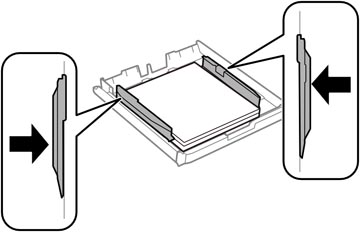

Slide the edge guides against the paper, but not too tightly.
To prevent paper feeding problems, make sure the paper fits beneath the top edges of the guides and do not load too much paper in the cassette.
Close the paper cassette cover and gently insert the paper cassette.
The paper may slide forward slightly as you insert the cassette. This is normal.
When prompted by the product's LCD screen, select the size and type of the paper you just loaded and
Extend the output tray and open the paper stopper.
If you are using legal-size or longer paper, do not open the paper stopper. Do not remove or insert the paper cassette during printing.
Always follow these paper loading guidelines:
Load only the recommended number of sheets.
Load paper short edge first, no matter which way your document faces.
Load the printable side facedown.
Load letterhead or pre-printed paper top edge first.
Do not load paper above the arrow mark inside the edge guide.
Check the paper package for any additional loading instructions.
