Loading Paper in Cassette 1 (Upper Cassette)

You can load photo paper and other media in these sizes in the upper paper cassette:
Note: Do not remove or insert the paper cassette during printing.

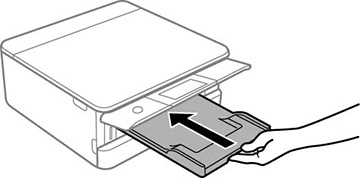

  1. Close the output tray, if necessary.


    Note: As you slide in the output tray, there may be slight resistance and noise. This is normal.

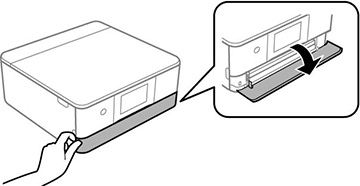

  2. Open the front cover.


  3. Slide out the upper paper cassette.


    Note: If the cassette is too far inside the product to reach, turn off your product and turn it back on again to reset the cassette's position.

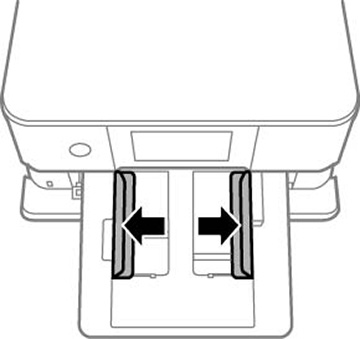

  4. Slide the edge guides outward.


  5. Insert paper in the cassette with the glossy or printable side facedown.


    Note: Make sure the paper is loaded against the front edge guide and does not extend beyond the rear edge of the cassette.

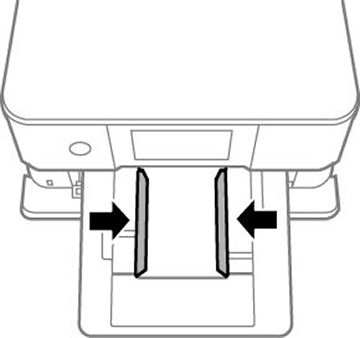

  6. Slide the side edge guides against the paper, but not too tightly.


    Note: Make sure the paper fits under the tabs on the edge guides.


  7. Keeping the cassette flat, slide it into your product.


  8. Select the size and type of paper you just loaded on the product LCD screen. The output tray extends automatically when you print.
Always follow these paper loading guidelines:
