You can load
paper up to this size in the paper cassette: Legal
(8.5 × 14 inches [216 × 356 mm]).
Note: Do not
remove or insert the paper cassette during printing.
- Press the
reset button to close the output
tray, if necessary. - Open the front cover until it clicks.
- Pull on the front cover to slide out the paper cassette.
- Slide the edge guides outward.
- Do one of the following:

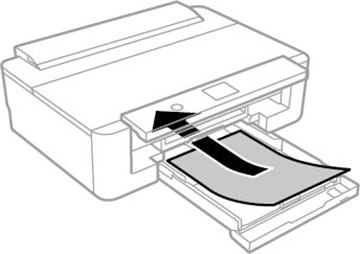

- Insert paper with the glossy or printable side facedown.
- Insert up to 10 envelopes, printable side down and flap edge left, as shown.

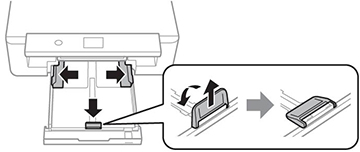

- For
legal-size paper, slide the edge guides outward, then lift and
lower the front edge guide as shown.

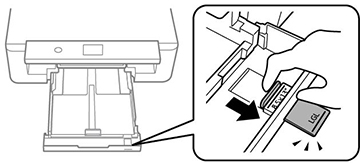

Extend the legal-size paper guide until it clicks. Load paper with the glossy or printable side facedown. Do not push on paper that extends beyond the cassette.

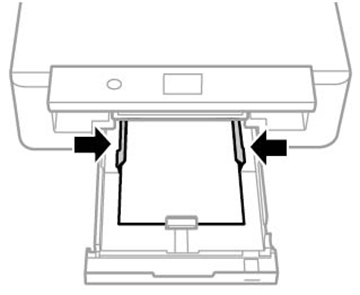

- Slide the edge guides against the paper, but not too
tightly. Make sure the paper is under the arrow mark for your paper
type.
Note: Make sure the paper fits under the tabs on the edge guides.
- Keep the cassette flat as you slide it into your
product.
Note: Leave enough space in front of the product for the paper to be fully ejected. Do not remove or insert the paper cassette while the product is operating.
- Select the size and type of paper you just loaded on the product LCD screen. The output tray extends automatically when you print.
Always follow
these paper loading guidelines:
- Load only the recommended number of sheets.
- Load paper short edge first and printable side down.
- Load paper of the same type and size in the paper cassette.
- Make sure the paper is under the tabs on the edge guides.
- For paper A4 and shorter, make sure it is not sticking out from the end of the cassette.
- If you have trouble loading a stack of envelopes, press each envelope flat before loading it or load one envelope at a time.
- If print quality declines when printing multiple envelopes, try loading one envelope at a time.
- Check the paper package for any additional loading instructions.
