Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Mounted on a ceiling or lighting track


Mounted on a wall


Placed on the floor or on a table or portable cart


Note: Use the direct mount (included) only for mounting the projector on a wall or ceiling. If installing on a lighting track, use only the optional lighting track mount (ELPMB54). If you do not mount the projector, use only the optional floor stand (ELPMB55).

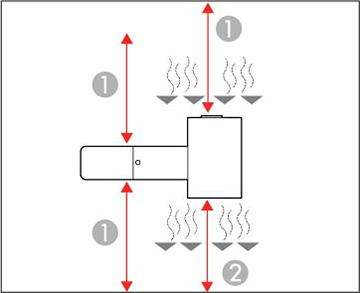

Note: Be sure to leave at least the following amount of space around the projector to avoid blocking the air exhaust and intake vents.


1 11.8 inches (30 cm)
2 7.8 inches (20 cm)
If you are installing multiple projectors next to each other, be sure to leave at least 20 inches (50 cm) of space between the projectors. Also make sure heated air from an exhaust vent does not go into the air intake vent of another projector.


You can rotate the projection unit 360 degrees horizontally and 90 degrees vertically. You can also tilt the image 90 degrees in either direction.



Make sure to select the correct Projection setting in the Extended menu.
