Loading Paper in Cassette 1 (Upper Cassette)

You can load photo paper and other media in these sizes in the upper paper cassette:
Note: Do not remove or insert the paper cassette while the product is operating.
  1. Close the output tray by hand or by selecting the icon on the Home screen, if necessary.
  2. Raise the control panel.


  3. Open the front cover until it clicks.


  4. Slide out the upper paper cassette (labeled 1 on the cassette).


    Note: If the cassette is too far inside the product to reach, turn the product off and on again to reset the cassette's position.
  5. Slide the edge guides outward.

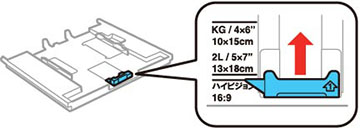

  6. Slide the front edge guide to the position for the paper size you want to use.


  7. Insert paper in the cassette with the glossy or printable side facedown.


    Note: Make sure the paper is loaded against the front edge guide and does not extend beyond the triangle symbol at the rear edge of the cassette.


  8. Slide the side edge guides against the paper, but not too tightly.


    Note: Make sure the paper fits under the tabs on the edge guides.
  9. Keeping the cassette flat, slide it into your product. Align the edge of the cassette to your product using the alignment marks as shown.


    Note: If you slide the cassette too far into the product, turn the product off and on again. The cassette moves to the correct position.
  10. Lower the control panel.
  11. Select the size and type of the paper you loaded on the LCD screen, and select Close.
    Note: You can quickly select frequently used paper settings by selecting Favorite Paper Settings.
    The output tray extends automatically when you print.
Always follow these paper loading guidelines:
