Using the Pens

Your projector came with a blue pen and an orange pen, identified by the color strip at the end of the pen. You can use either pen, or both pens at the same time (one of each color) in built-in whiteboard or annotation mode.
Make sure the pen batteries are installed.

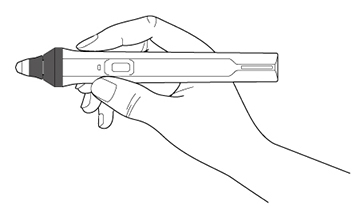

Note: The pen turns off automatically after 15 seconds of inactivity. Hold the pen to turn the pen back on.
Note: If you are using two pens at the same time, make sure to use them at least 4 inches (10.16 cm) apart to avoid interference.

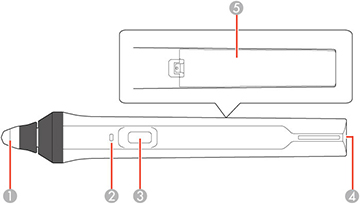

1 Pen tip
2 Battery light
3 Function button
4 Attachment for optional strap or cord
5 Battery cover
