Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer1 port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

To output images to an external VGA monitor, set the Monitor Out Port setting to Monitor Out in the projector's Signal I/O menu.

If you want to output images to an external monitor when the projector is turned off, you need to select Always On as the A/V Output setting in the projector's Signal I/O menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.
  1. Make sure your computer is connected to the projector's Computer port. If there are two computer ports, make sure you use the Computer1 port.

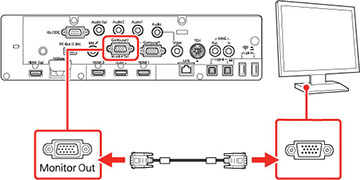

  2. Connect the external monitor's cable to your projector's Computer2/Monitor Out port.

    Note: Content you draw using the built-in interactive features is not displayed on an external monitor unless you draw it using Easy Interactive Tools software.
