Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers.

Set the Audio Out Device setting to AV System in the projector's Signal I/O menu. When an audio/video system is not connected to the projector, audio is output from the external speakers even if Audio Out Device is set to AV System.

If you want to output audio from the external speakers when the projector is not projecting images, you need to select Always On as the A/V Output setting in the projector's Signal I/O menu.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

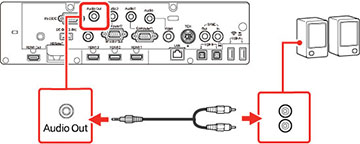

  1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.
  2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-jack cable, or another type of cable or adapter.
  3. Connect one end of the cable to your external speakers as necessary.
  4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.
