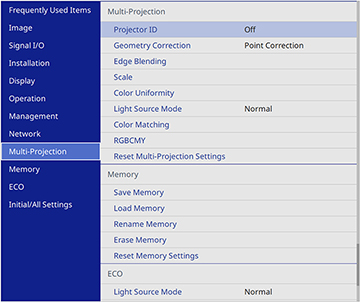

| Projector ID
|
Off
1 through 9
|
Assigns an ID for the projector when you use multiple
projectors |
| Geometry Correction
|
H/V-Keystone
Quick Corner
Arc Correction
Point Correction
Memory
|
Adjusts image shape to rectangular (horizontally and
vertically)
H/V Keystone: lets
you manually correct horizontal and vertical sides
Quick Corner: select
to correct image shape and alignment using an on-screen display
Arc Correction:
select to adjust the curve or arc of the horizontal and vertical
sides
Point Correction:
select to divide the projected image into a grid and correct
distortion by moving a selected point
Memory: controls
memory functions for current image shape settings
- Save Memory: saves
the current image shape as a memory setting
- Load Memory: loads
a saved image shape memory
- Rename Memory:
renames a saved image shape memory
- Erase Memory:
deletes a saved image shape memory
- Reset Memory:
resets all the image shape memory settings
|
| Edge Blending
|
Edge Blending
Top Edge
Bottom Edge
Left Edge
Right Edge
Line Guide
Pattern Guide
Guide Color
|
Blends the border between multiple images to create a
seamless screen |
| Black Level
|
Color Adjustment
Area Correction
Reset
|
Adjusts the brightness and tone differences in
overlapping images |
| Scale
|
Varying levels available |
When using multiple projectors, adjusts the scale of
the image displayed by each projector |
| Color Uniformity
|
Color Uniformity
Adjustment Level
Start Adjustments
Reset
|
Adjusts the color tone balance
Color Uniformity:
set to On to adjust the color
tone balance for the whole screen
Adjustment Level:
sets the adjustment level
Start Adjustments:
adjusts the red, green, and blue color tones individually for the
selected area
Reset: resets all
Color Uniformity adjustment values to their defaults |
| Light Source Mode
|
Normal
Quiet
Extended
Custom
|
Selects the brightness mode of the projector when the
Maintain Brightness setting is
disabled
Normal: maximum
brightness
Quiet: 70%
brightness with reduced fan noise
Extended: 70%
brightness and extends the life expectancy of the light source
Custom: select a
custom brightness level and enable use of the next setting |
| Color Matching
|
Adjustment Level
Red
Green
Blue
Brightness
|
Corrects the tint and brightness differences between
images |
| RGBCMY
|
Varying levels available |
Adjusts the hue, saturation, and brightness for each
color |
| Reset Multi-Projection
Settings
|
— |
Resets all settings on the Multi-Projection menu to
their default values |
