Correcting Image Shape with H/V Keystone

You can use the projector remote control or control panel buttons to correct the shape of an image that is unevenly rectangular on the sides.
Note: You can also adjust the keystone settings from the Settings > Installation > Keystone menu.


Note: You cannot combine Keystone correction with other image shape correction methods.
  1. Turn on the projector and display an image.
  2. Press the  keystone button on the projector remote control.
  3. Use the arrow buttons on the projector remote control to select between vertical and horizontal keystone correction, and to adjust the image shape as necessary.

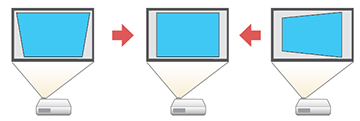

    V-Keystone



    H-Keystone



  4. Press the  Esc button when you are finished. After correction, your image is slightly smaller.
