Correcting Image Shape with H/V Keystone

You can use the projector's Keystone setting to correct the shape of an image that is unevenly rectangular on the sides.

Note: You cannot combine Keystone correction with other image shape correction methods. You can correct horizontal keystone distortion up to 40° right or left, and vertical keystone distortion up to 45° up or down.

Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the Pattern button on the remote control.
Press the Menu button.
Select the Settings menu and press Enter.

Note: You can also press the Keystone button on the remote control to display the Keystone adjustment screen.
Select the Keystone setting and press Enter.
Select H/V Keystone and press Enter. Then press Enter again.

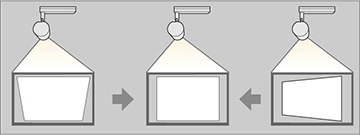

Use the arrow buttons on the remote control to select between vertical and horizontal keystone correction, and to adjust the image shape as necessary.
V-Keystone

H-Keystone
When you are finished, press Esc. After correction, your image is slightly smaller.
