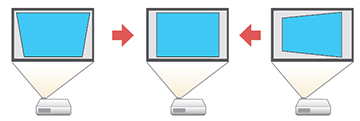

You
can use the projector's H/V-Keystone setting to correct the shape of
an image that is unevenly rectangular on the sides.
Note: You
cannot combine H/V-Keystone correction with other image shape
correction methods.
- Turn on the projector and display an image.
- Press the Menu button.
-
Select the Installation menu and press
Enter.
-
Select the Geometry Correction setting and press
Enter.
-

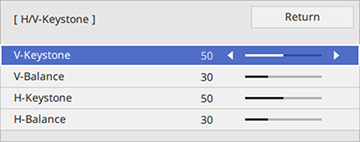

Select the H/V-Keystone setting and press Enter. Then press Enter again. You see the H/V-Keystone
adjustment screen:
-
Use the arrow buttons on the projector or the
remote control to select between vertical and horizontal keystone
or balance correction and to adjust the image shape as
necessary.
V-Keystone
V-Balance
H-Keystone
H-Balance
Note: The V-Balance and H-Balance settings are not available on the PowerLite EB-L520U. - When you are finished, press Esc. After correction, your image is slightly smaller.
