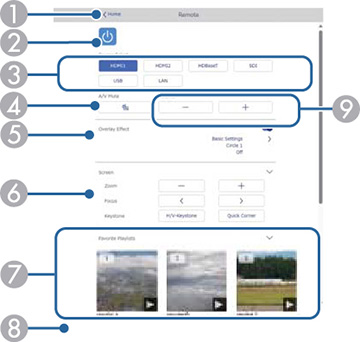

Remote
Note: If the
Remote Password is set to On, you
need to enter your user name and password. (The
default username is EPSONREMOTE.
No password is set by default.)
| 1 |
Returns to the Epson
Web Control screen |
| 2 |
Turns the projector on or off |
| 3 |
Selects the input source |
| 4 |
Turn the video and audio on or off
temporarily. |
| 5 |
Turns Overlay Effect on or off to add color and
shape effects to a playlist.
Overlay Effect option is displayed when the current
source is anything other than USB.
When turning on, the Effects screen is displayed. You
can add predefined color and shape effect filters to a playlist.
You can also create a customized effect. |
| 6 |
Selects the screen settings |
| 7 |
Selects your favorite
playlists |
| 8 |
Displays playlist information such
as length, overlay effects, and repeat playback |
| 9 |
Adjusts the speaker volume |

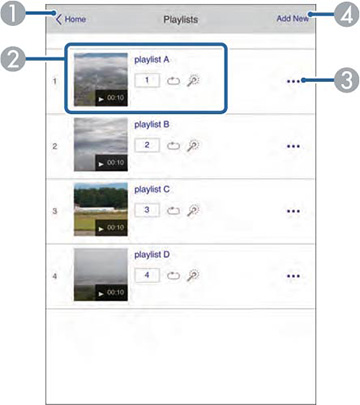

Playlists
| 1 |
Returns to the
Epson Web Control screen |
| 2 |
Controls playback of the
playlist |
| 3 |
Edits, copies, or deletes the
playlist |
| 4 |
Creates a new playlist |

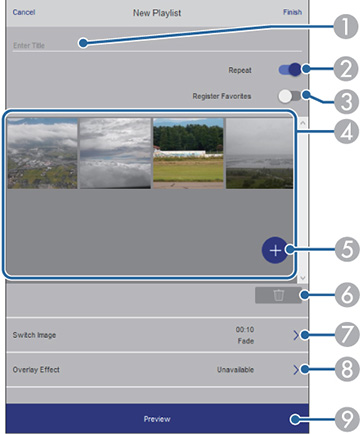

Create or Edit Playlist
| 1 |
Edits the playlist
name |
| 2 |
Enables repeat playback |
| 3 |
Adds the playlist to your
favorites list |
| 4 |
Displays the images or movies in
the order that they will be played |
| 5 |
Adds items to the playlist |
| 6 |
Deletes items from the
playlist |
| 7 |
Opens the Switch Image screen (specifies the time
before the projector switches to the next item in the
playlist) |
| 8 |
Opens the Effects screen |
| 9 |
Previews the playlist |

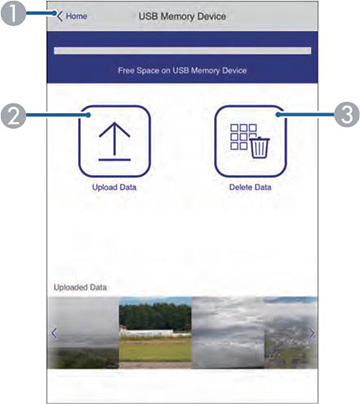

USB Memory Device
| 1 |
Returns to the
Epson Web Control screen |
| 2 |
Uploads images or videos to add to
playlists on a USB device |
| 3 |
Deletes images or videos on the
USB device |
Note: You can
upload .avi, .jpeg (.jpg), .png, .bmp, or .gif files using Epson
Web Control. If you want to add .mp4 or .mov files to the playlist,
use the Epson Projector Content Manager software or the Epson
Creative Projection app.

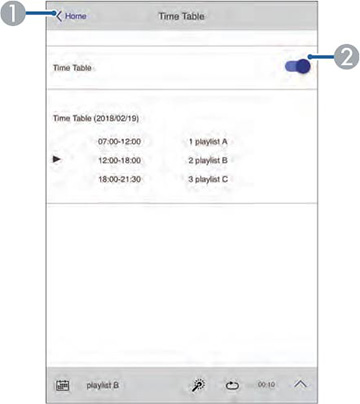

Time Table
| 1 |
Returns to the
Epson Web Control screen |
| 2 |
Turns the time table on or off
(see the online Epson Projector Content Manager
Operation Guide for more information) |
OSD Control Pad
| 1 |
Returns to the Epson
Web Control screen |
| 2 |
Displays the projector's setting
menus |
| 3 |
Use your finger or mouse to
navigate the menus |
| 4 |
Switches the operation method to
button operation. |
| 5 |
Resets the selected setting to its
default value. |
| 6 |
Returns to the previous menu |
| 7 |
Displays help topics |
Note: You
cannot change some settings using Epson Web Control.
