When Content
Playback mode is turned on in the Settings menu, you can select
projector settings, control projection, and edit playlists using a
web browser.
Note: You can
also control the projector using a web browser through the Epson
iProjection app.
Note: Do not
remove any USB device connected to the projector or unplug the
power cord when the Playlists or USB Memory Device screen is
displayed; data saved on the USB device may be damaged.
- Make sure the projector is operating in Content Playback mode.
- Make sure the projector is turned on and your computer or device is connected to the same network as the projector.
- Start your web browser on the computer or device.
- Type the projector's IP address into the browser's address
box and press the computer's Enter key. You see the Epson Web

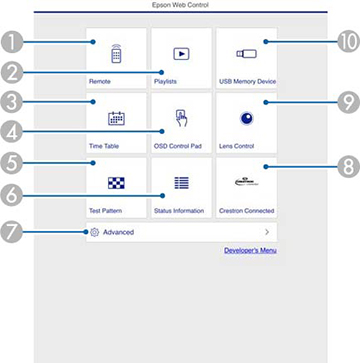

Control screen.
1 Controls the projector remotely 2 Edits playlists for Content Playback mode 3 Opens the Time Table screen 4 Operates the projector's menus with your finger or a mouse 5 Displays a test pattern 6 Displays the projector's status 7 Opens detailed projector settings 8 Opens the Crestron Connected window (available when Crestron Connected is turned on) 9 Operates the projector's lens 10 Registers or deletes playlist data on the USB device - Select the option corresponding to the projector function
you want to control.
Note: You may need to log in to access some of the options on the Web Control screen. If you see a login window, enter your user name and password. (The default user name is EPSONWEB and the default password is not set.)
