Connecting to a Trigger Out Port

You can connect your projector to external devices such as motorized screens or a motorized anamorphic lens that support a trigger signal. When active, a 12V (200mA maximum) signal is sent to the connected device while the projector is powered on. See the link below for cable specifications.

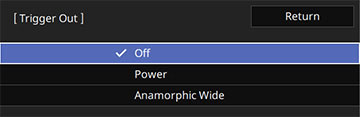

Note: If you select Anamorphic Wide as the Trigger Out setting, voltage is only output from the Trigger Out port when the Aspect setting is set to Anamorphic Wide or Horiz.Squeeze.

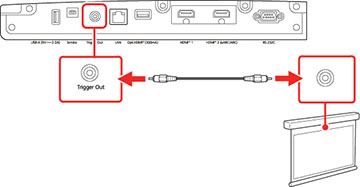

  1. Connect a 3.5 mm mono or stereo mini-jack cable to the external device's trigger port. See your device's documentation for details.
  2. Connect the other end to the projector's Trigger Out port.


  3. Turn on the Trigger Out setting in the projector's Operation menu. See the link below for setting descriptions.


Parent topic: Connecting External Output Devices
Related reference
General Projector Specifications
Feature Settings - Operation Menu
