Maintenance / Cleaning and Transporting the Product

Transporting the Product

For long distances
For short distances
Finding a place for the product

For long distances

If you need to transport your product for long distances, carefully repack it using the original box and packing originals.

Follow the steps below to repack your product.

Set the scanner's carriage to the carriage lock position using the control panel. To do so, press the  Setup button, select Scan Settings, and then select Carriage Lock.

Set the transportation lock on the left side of the document table is set in the  locked position. See Scanner parts.

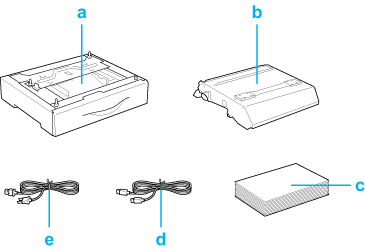

Turn off the product and remove the following items:

a.

installed option (only when the optional paper cassette unit is installed)

b.

photoconductor unit

c.

loaded paper

d.

interface cable

e.

power cord

Attach the protective materials onto the product, then repack the product in its original box.

Caution:
After transporting the product, set the transportation lock on the left side of the document table in the  unlocked position before using the product. See Scanner parts.


[Top]

For short distances

Always pay attention to the following handling precautions when you need to move the product for short distances.

If you are moving the product on its own, two people should lift and carry the product.

Follow the steps below to move the product for short distances.

Turn off the product and remove the following items.

a.

installed option (only when the optional paper cassette unit is installed)

b.

photoconductor unit

c.

loaded paper

d.

interface cable

e.

power cord

Be sure to lift the product by the correct positions as shown below.

Warning:
The back side of the product is heavier than the front, so prepare for this difference as you lift. Two people should lift the product from the correct positions.

When moving the product, always keep it horizontal.


[Top]

Finding a place for the product

When relocating the product, always choose a location that has adequate space for easy operation and maintenance. Use the following illustration as a guide for the amount of space required around the product to ensure smooth operation. Dimensions shown in the illustration below are in millimeters.

a.

920 mm (36.2 in.)

b.

258 mm (10.2 in.)

c.

868 mm (34.2 in.)

d.

100 mm (3.9 in.)

e.

300 mm (11.8 in.)

To install and use any of the following options, you will need the indicated amount of additional space.

The 500-Sheet Paper Cassette Unit adds 130 mm (5.1 in.) to the bottom of the product.

In addition to space considerations, always heed the following precautions when finding a place to locate the product:

Caution:
  • Leave adequate room around the product to allow for sufficient ventilation.
  • Avoid locations that are subject to direct sunlight, excessive heat, moisture, or dust.
  • Avoid using outlets that other appliances are plugged into.
  • Use a grounded outlet that matches the product's power plug. Do not use an adapter plug.
  • Only use an outlet that meets the power requirements for this product.


[Top]
