Scanning

Placing Photos and Documents on the Document Table

Before scanning a document, remember to respect the rights of copyright owners. Do not scan published text or images without first checking the copyright status.

Note:

Keep the document table clean.

You cannot scan films.

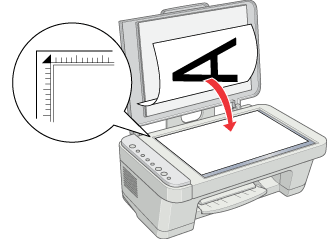

Open the document cover. Place the original document face down on the document table. Make sure that the document is aligned with the rulers along the edges of the glass.

Note:

Make sure the document is flat against the glass; otherwise the scanned image may be blurry.

Position the document about 0.1 inch (2.5 mm) from the edges of the document table. The areas close to the edges cannot be scanned.

1. Maximum unreadable area of 0.1 inch (2.5 mm)
2. Maximum unreadable area of 0.1 inch (2.5 mm)

Close the document cover gently so that the document does not move.

Note:

Be sure to close the document cover to block light.

Do not leave photographs on the document table for an extended period of time as they may stick to the glass of the document table.

Do not place heavy objects on top of the CX1500.
