Product Information / Using Memory Card

Loading Memory Cards

Loadable memory card
Available image files
Inserting a memory card into the slot
Ejecting memory cards

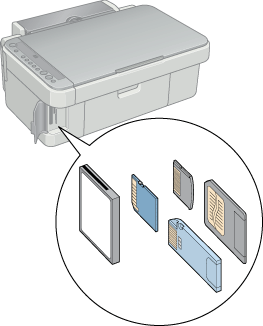

Loadable memory card

This product features three memory card slots.

The types of memory cards you can insert in each slot are shown below.

Slot	Card
a	Memory Stick/MagicGate Memory Stick/Memory Stick Duo/ Memory Stick Pro/Memory Stick Pro Duo/SD Card/miniSD Card*/MultiMediaCard
b	SmartMedia/xD-Picture Card
c	CompactFlash/Microdrive

* An adapter is required.

[Top]

Available image files

You can use image files that meet the following requirements.

Media format	DCF version 1.0 compliant*
File format	JPEG format image files**, DOS FAT (FAT 12 or 16, one partition) taken with a DCF version 1.0 compliant digital camera.
Image size	Vertical 120 to 4600 pixels, horizontal 120 to 4600 pixels
Number of files	Up to 999

* DCF stands for the "Design rule for Camera File system" standard, which is set by the Japan Electronics and Information Technology Industries Association (JEITA).

** Supports Exif Version 2.1/2.2.

Note:

You cannot print images with file name containing double-byte characters.

[Top]

Inserting a memory card into the slot

Press the On button to turn on this product.

Open the memory card slot cover.

Make sure the memory card light beside the memory card slot is off, and then insert a memory card as far as it can go into the appropriate slot.

Note:

You can load only one memory card at a time.

Close the memory card slot cover.

Caution:

Do not try to force the memory card into the slot. Part of it will stick out.

Incorrect loading of a memory card may damage this product, memory card, or both.

Keep the memory card slot cover closed while a memory card is inserted. This protects the memory card and the slot from dust and static; otherwise data on the memory card may be lost, or this product may be damaged.

Depending on the memory card inserted in this product, the static charge on the memory card may cause this product to malfunction.

Note:

If the memory card is inserted incorrectly, the memory card light does not go on.

[Top]

Ejecting memory cards

Make sure that all print jobs have finished and that both the memory card access light and the On light are not flashing.

Open the memory card slot cover.

Make sure that the product is not accessing the memory card (the memory card slot light is not flashing), then pull the memory card straight out of the slot.

Caution:

Do not remove the memory card or turn off the product while the printing or while the memory card access light or On light is flashing. Data on the memory card may be lost.

If you are using this product with a computer which has Windows 2000 or XP installed, never turn this product off or disconnect the USB cable with a memory card inserted in this product; this may destroy data on the memory card. See Disconnecting or Turning Off This Unit for details.
