Transporting This Product

If you need to transport this product, carefully repack it using the original box (or a similar box that this product fits snugly into) and packing materials as follows:

Remove all paper from the sheet feeder and make sure that this product is off.

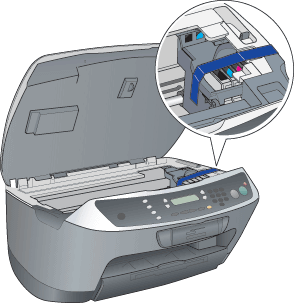

Open the scanner unit and make sure that the print head is in the home position on the right. Secure the ink cartridges to this product with a tape, and then close the scanner unit.

Unplug the power cord from the electrical outlet and the USB cable from your computer if connected.
Connecting and Disconnecting the USB Cable

Remove the paper support and the feeder guard. Push the output extension tray in.

Attach the protective materials to both sides of this product, and then repack this product, the power cord and the USB cable in the box.

Keep this product on a flat surface to protect it from shocks during transportation.

Note:
Do no forget to remove the protective materials and tape from this product before using it again.
