Reference Guide
|
|
Product Information / Using the Memory Card
Loading Memory Cards
Supported memory card
Supported image file formats
Inserting memory cards
Ejecting memory cards
Supported memory card
The CX6500 features three memory card slots.
The supported memory cards for each slot are shown below.
Slot
|
Card
|
a
|
Memory Stick/ MagicGate Memory Stick/ Memory Stick Duo*/Memory Stick PRO/SD Card/ miniSD Card*/MultiMediaCard
|
b
|
SmartMedia/xD-Picture Card
|
c
|
CompactFlash/ Microdrive
|
 |
* An adapter is required.
|
 |
Note:
|
 |
The method to use a memory card varies depending on its card type. Be sure to refer to the documentation packaged with your memory card for details.
|
|

[Top]
Supported image file formats
You can use image files that meet the following requirements.
Media format
|
DCF version 1.0 compliant*
|
File format
|
JPEG or TIF format image files**, DOS FAT (FAT 12 or 16, one partition) taken with a DCF version 1.0 compliant digital camera.
|
Image size
|
Vertical 120 to 4600 pixels, horizontal 120 to 4600 pixels
|
Number of files
|
Up to 999
|
 |
* DCF stands for the "Design rule for Camera File system" standard, which is set by the Japan Electronics and Information Technology Industries Association (JEITA).
|
 |
** Supports Exif Version 2.1/2.2.
|
 |
Note:
|
 |
You cannot print images that contain double-byte characters in their file name.
|
|

[Top]

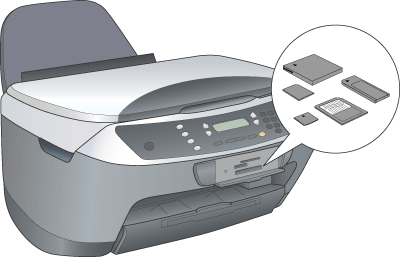

Inserting memory cards
 |
Press the On button to turn on the CX6500.
|
 |
Open the memory card slot cover.
|
 |
Make sure the memory card light beside the memory card slot is off, then insert a memory card as far as it can go into the appropriate slot.
|
 |  |
Note:
|
 |  |
You can load only one memory card at a time.
|
|
 |
Close the memory card slot cover.
|
 |  |
Caution:
|
 |  | -
Do not try to squeeze the memory card into the slot. Memory cards cannot be fully inserted into the card slots.
|
|
 |  | -
Loading a memory card incorrectly may damage the CX6500, the memory card, or both.
|
|
 |  | -
Keep the memory card slot cover closed while the memory card is loaded. This protects the memory card and the slot from dust and static; otherwise data on the memory card may be lost, or the CX6500 may be damaged.
|
|
 |  | -
Depending on the memory card loaded in the CX6500, the static charge on the memory card may cause it to malfunction.
|
|
 |  |
Note:
|
 |  |
If the memory card is inserted incorrectly, the memory card light does not go on.
|
|
 |
If the images are stored on the memory card, the following message appears. Press the D or OK button.
|

[Top]
Ejecting memory cards
 |
Make sure that all the print jobs are finished and the memory card light is not flashing.
|
 |
Open the memory card slot cover.
|
 |
Make sure that the CX6500 is not accessing the memory card (the memory card slot light is not flashing), then eject the memory card by pulling it straight out of the slot after printing is finished.
|
 |
Caution:
|
 | -
Do not remove the memory card or turn off the CX6500 while the printing or while the memory card light is flashing. Data on the memory card may be lost.
|
|
 | -
If you are using the CX6500 with a computer which has Windows 2000 or XP installed, never turn it off or disconnect the USB cable with a memory card inserted in the card slot; this may destroy data on the memory card. See Disconnecting or Turning off the CX6500 for details.
|
|

[Top]
