Printing / How to Print

Printing Photos

Handling single sheets of paper
Driver settings for Windows
Driver settings for Mac OS 9
Driver settings for Mac OS X

Before turning on the CX6600, make sure it is connected to your computer.

Press the  On button to turn on the CX6600. All mode lights flash, then the mode button for the mode you used last time lights, meaning it has completed its initialization.

Handling single sheets of paper

Refer to the section below for details on loading single sheets of paper.

Loading Single Sheets of Paper

When using special media, refer to the section below.

Using Special Media

[Top]

Driver settings for Windows

Open the file you want to print.

Access the printer driver.

Accessing the Printer Software for Windows

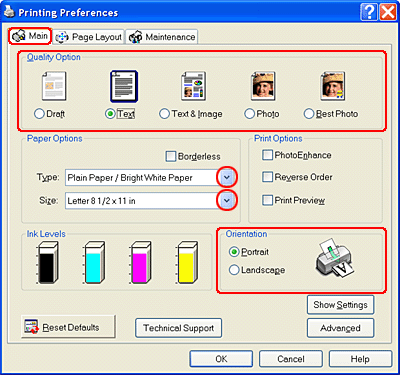

Click the Main tab, then select a Quality Option setting. For details, see online help.

Select a paper Type setting.

Media Type Settings

Select a paper Size setting. You can also define a custom paper size. For details, see the following section.

Making User Defined Paper Sizes

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click OK to close the printer driver settings dialog box.

Print your data.

[Top]

Driver settings for Mac OS 9

Open the file you want to print.

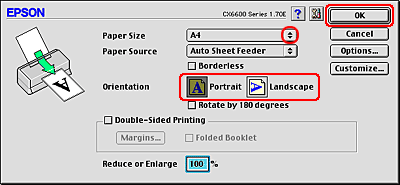

Access the Page Setup dialog box.

Accessing the Printer Software for Mac OS 9

Select a Paper Size setting. You can also define a custom paper size. For details, see the following section.

For Mac OS 9

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Click OK to save the settings and close the Page Setup dialog box.

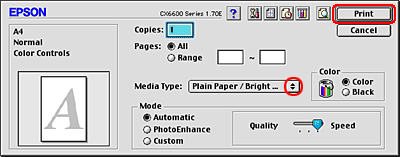

Access the Print dialog box.

Accessing the Printer Software for Mac OS 9

Select a Media Type setting.

Media Type Settings

Click Print to start printing.

[Top]

Driver settings for Mac OS X

Open the file you want to print.

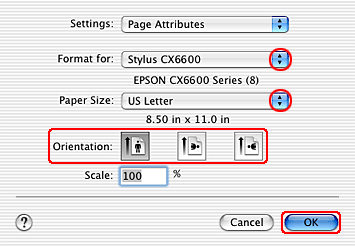

Access the Page Setup dialog box.

Accessing the Printer Software for Mac OS X

Make the appropriate Format for setting.

Select a Paper Size and Orientation settings.

Click OK to close the Page Setup dialog box.

Access the Print dialog box.

Accessing the Printer Software for Mac OS X

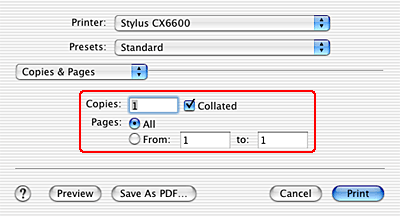

Make the Printer setting so that it matches the Format for setting you made in the Page Setup dialog box in step 3. Then make the Copies & Pages settings.

Note:

The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

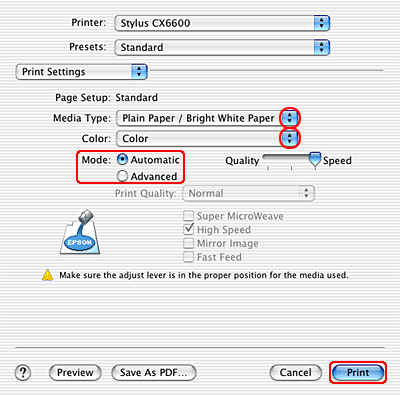

Select Print Settings from the pop-up menu.

Select Media Type, Color, and Mode settings. See online help for details.

Media Type Settings

Click Print to start printing.
