Scanning / How to Scan

Scanning an Image

Turning on the CX6600
Placing your materials on the document table
Starting the software and scanning an image

EPSON Scan provides three modes for you to make any scanning settings; Full Auto Mode, Home Mode, and Professional Mode. This section describes how to scan an image in the Full Auto Mode. The Full Auto Mode lets you scan images using automatically-adjusted settings. For more details, see Choosing a Scanning Mode.

Note:

You cannot scan an image with a size that exceeds the available memory or disk space. If you try to scan the image, an alert appears on the screen.

Note for Macintosh users:

Most illustrations shown in this section are for Windows, so they may vary in appearance from what actually appears on your screen. The instructions are the same, except as noted.

Caution:

Before starting the following steps, make sure that all the necessary software including EPSON Scan has been installed. For details about how to install the software, see the Start Here sheet.

Turning on the CX6600

Before turning on the CX6600, make sure it is connected to your computer.

Press the  On button to turn on the CX6600. All mode lights flash, then the mode button for the mode you used last lights, meaning it has completed its initialization.

[Top]

Placing your materials on the document table

You can scan reflective documents (like photos or paper). See Placing Photos and Documents on the Document Table.

[Top]

Starting the software and scanning an image

You can start EPSON Scan in the following ways.

• Start EPSON Scan directly as a stand alone application

• Start EPSON Scan from a TWAIN-compliant application

This section provides information on how to start EPSON Scan from ArcSoft PhotoImpression. For details on starting EPSON Scan as a stand-alone application, see Starting EPSON Scan.

Note for Windows 98 users:

ArcSoft PhotoImpression 5 supports Windows 98 Second Edition or later. For version earlier than Windows 98 Second Edition, use EPSON Scan or other TWAIN compliant applications. See Starting EPSON Scan for details.

Start ArcSoft PhotoImpression.

For Windows users:
Click Start, point to All Programs (for Windows XP users) or Programs (for Windows 98, Me, or 2000 users), and select ArcSoft PhotoImpression 5. Click PhotoImpression 5.

For Macintosh users:
Double-click the Applications folder on your Macintosh HD, then double-click the PhotoImpression folder. Finally, double-click the PhotoImpression 5 icon.

Click the Camera/Scanner button.

Select a file format, location, and file name, then click Epson Stylus CX6600. EPSON Scan starts. See File formats for information on file formats.

Note for Windows XP users:

Do not choose WIA-Epson Stylus CX6600 from the menu to select the CX6600. If you select it, you cannot use the Epson scanner function fully.

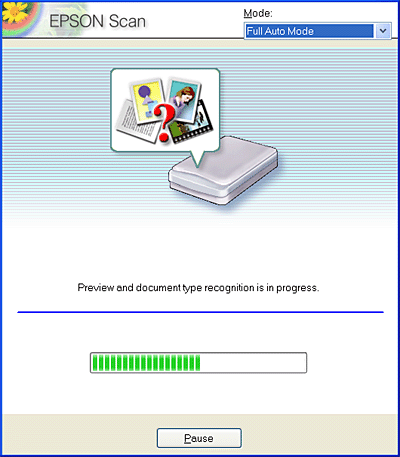

EPSON Scan automatically previews the image, and recognizes the document source and type.

If you want to select more settings, click Pause, then click Options to open the Options dialog box. For more details on settings, click the Help button in the Option dialog box.

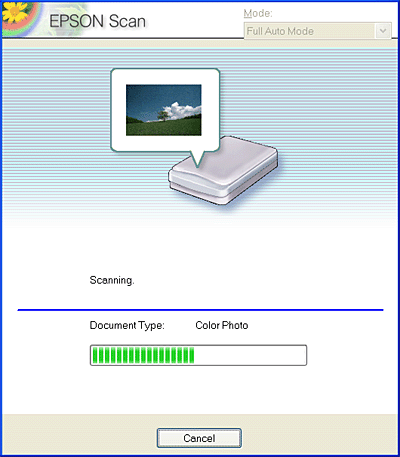

After EPSON Scan has previewed and recognized the document type, the following window appears. You can see the document type in the window.

EPSON Scan automatically locates the target images, modifies their skew, and starts scanning.

Caution:

Do not open the scanner unit during scanning or copying; otherwise, you may damage the CX6600.

Note:

Be aware that clicking Cancel on this screen closes EPSON Scan.

The scanned image is sent to ArcSoft PhotoImpression.

Note:

Depending on the image you want to scan, you may not get the expected scanned image. In this case, scan the image in the Home Mode or Professional Mode.

When you scan in the Full Auto Mode, black and white documents might be recognized as a color document. In this case, scan the image in the Home Mode or Professional Mode.

For information on editing your scanned images, refer to your application's documentation.

File formats

The following table lists some common image file formats. Select a format supported by your image processing application when you save image files.
