Loading Paper

Single Sheets

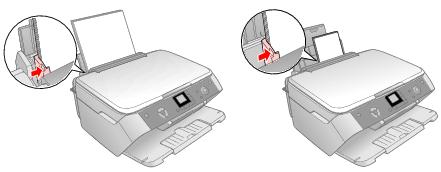

  1. Open the paper support and output tray, then slide out the extensions.



  2. Flip the feeder guard forward.



  3. Slide the left edge guide to the left.

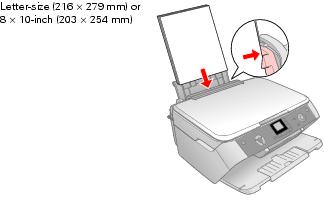

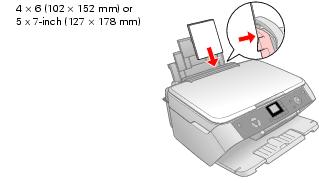

  4. Insert the paper, printable side up, against the right edge guide. Always load it short edge first, even for landscape printing. Make sure the paper lies beneath the tabs and the arrow mark on the left edge guide.





    5. You can load up to 100 sheets of plain paper or up to 20 sheets of photo paper. (See Special Papers for capacity guidelines on other paper types.)

    Note: The type of paper you choose affects the way your printout looks, so be sure to select the correct paper for your job. If you are just making a copy or printing a rough draft of an image, plain paper is fine. However, for the best results, you'll want to use one of Epson's special ink jet papers designed for your printer. For example, your photos will look great printed on Epson Premium Glossy Photo Paper. See Special Papers for more information.

  5. Slide the left edge guide against the left edge of the paper (but not too tightly).



  6. Flip the feeder guard back.



  7. Make sure the paper thickness lever is set down to the  L position.









Follow these guidelines when loading paper:

Envelopes

  1. Open the paper support and output tray, then slide out the extensions.



  2. Flip the feeder guard forward.



  3. Slide the left edge guide to the left.



  4. Load up to 10 envelopes at a time, flap edge left, printable side up, against the right edge guide.



    5. Note: For best results, press each envelope flat before loading, or load one envelope at a time.

  5. Slide the left edge guide against the envelopes (but not too tightly).
  6. Flip the feeder guard back.
  7. Set the paper thickness lever to the  H position.









Select the following settings when printing on envelopes:

For instructions on selecting these settings, see:

Special Papers

Epson offers the following special papers for the Epson Stylus CX7700:

Paper name*
Size
Part number
Epson Premium Bright White Paper
Letter (8.5 × 11 in. [216 × 279 mm])
S041586
Epson Photo Quality Ink Jet Paper
Letter (8.5 × 11 in. [216 × 279 mm])
S041062
Legal (8.5 × 14 in. [216 × 356 mm])
S041067
Epson Ultra Premium Glossy Photo Paper
Borderless 4 × 6 in. (102 × 152 mm)
S041934
Letter (8.5 × 11 in. [216 × 279 mm])
S041935
Epson Premium Glossy Photo Paper
Borderless 4 × 6 in. (102 × 152 mm)
S041808/
S041727
Borderless 5 × 7 inches
(127 × 178 mm)
S041464
Borderless 8 × 10 in.
(203 × 254 mm)
S041465
Letter (8.5 × 11 in. [216 × 279 mm])
S041286
Epson Premium Semigloss Photo Paper
Letter (8.5 × 11 in. [216 × 279 mm])
S041331
Epson Glossy Photo Paper
Borderless 4 × 6 in. (102 × 152 mm)
S041809
Letter (8.5 × 11 in. [216 × 279 mm])
S041141/
S041271
Epson Matte Paper Heavyweight
Borderless 8 × 10 in.
(203 × 254 mm)
S041467
Letter (8.5 × 11 in. [216 × 279 mm])
S041257
Epson Double-Sided Matte Paper
Letter (8.5 × 11 in. [216 × 279 mm])
S041568

* The availability of paper types and sizes varies by location.

You can purchase genuine Epson ink and paper from an authorized Epson reseller. To find the nearest reseller, please call your nearest Epson office as described in Where To Get Help.

When loading Epson ink jet papers, follow the capacity guidelines below. See Selecting the Correct Paper Type for the paper type settings you should select for these papers in the printer software.

Paper type
Loading capacity
Premium Bright White Paper
80 sheets
Ultra Premium Glossy Photo Paper
Premium Glossy Photo Paper
Premium Semigloss Photo Paper
Glossy Photo Paper
Matte Paper Heavyweight
Double-Sided Matte Paper
20 sheets
Photo Quality Ink Jet Paper
100 sheets
