Using Options / Using the Transparency Unit

Using the Transparency Unit to Scan

Scanning film with suitable settings
Removing dust on films
Reducing grain on the scanned image
Scanning reflective (non-film) documents

Scanning film with suitable settings

This section explains how to make settings suitable for materials you want to scan.

Follow the steps below to make settings suitable for scanning film in the Professional Mode.

Place your film on the document table. See Setting and Placing Film for details.

Start EPSON Scan and then select the Professional Mode. For details on how to select a scanning mode, see Changing a scanning mode.

The following window appears.

Specify the Original settings to match your film.

Document Type

Film

Film Type

Select a film type from the Film Type list.

Specify the Destination settings to match the resulting image file you desire.

Image Type

Select a suitable image type from the Image Type list.

Resolution

Select a suitable resolution from the Resolution list.

When you specify a high resolution, the number of pixels of the data increases and the scanned image becomes fine in texture. However, increasing the resolution causes the data size to increase. Specify a suitable resolution according to the scanning purpose.

The following table indicates the suitable resolution to use according to the scanning purpose.

Purpose

Resolution

Sending E-mail

96 to 150 dpi

Printing

300 dpi

Filing

300 dpi

Click the Preview button to preview the images.

Use Target Size to specify the output size of the scanned image and specify the Adjustments settings, if necessary. (You may need to scroll to the bottom of the screen.)

You can improve the scanned image quality by removing dust or reducing grain. Follow the instruction on Removing dust on film or Reducing grain on the scanned image.

Click Scan. EPSON Scan starts scanning.

The scanned images are sent to the application or saved in the specified folder.


[Top]

Removing dust on film

You can improve the quality of scanned images by removing dust on film using this feature.

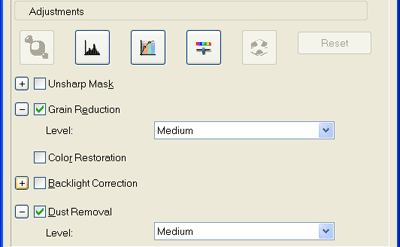

Select the Dust Removal check box. (You may need to scroll to the bottom of the screen.)



Select the level of Dust Removal from the pull-down list.

Dust on the films is removed from the scanned images.

Dust Removal not applied

Dust Removal applied

Note:
  • Before placing your film on the document table, remove any dust that you can see on the film.
  • The result of the Dust Removal does not appear on the previewed image. Check the result on the scanned image.


[Top]

Reducing grain on the scanned image

You can improve the quality of scanned images by reducing grain. This feature is only available in Professional Mode.

Note:
  • You can use this feature only when scanning film.
  • The result of Grain Reduction does not appear on the previewed image. Check the result on the scanned image.

Select the Grain Reduction check box. (You may need to scroll to the bottom of the screen.)

Select the level of Grain Reduction from the pull-down list.

If a color stripe appears when you are scanning a film

The optical phenomenon where color stripes appear is called Newton's ring. This occurs when two very thin membranes, such as film surfaces or soap bubble surfaces, meet.

If this phenomenon occurs, try scanning the film upside down. This may eliminate the effect of Newton's ring.


[Top]

Scanning reflective (non-film) documents

To scan reflective documents when the Transparency Unit is installed, always insert the reflective document mat included with this unit. Also, make sure you remove the transparency guide from the scanner's document table.

Insert the reflective document mat as described below.

Open the Transparency Unit, and then remove the transparency guide from the scanner's document table.

Slide the mat into the upper side, and then insert the tabs into the slots on the lower side slots on the Transparency Unit.

Place your document on the document table, and then close the Transparency Unit.

To remove the reflective document mat, slide it up and out of the slots on the Transparency Unit.
