Online Reference Guide
|
|
How To
Scan Materials for Printing
Scan images for printing in the Home Mode
Scan documents for printing in the Office Mode
Scan materials for printing in the Professional Mode
When you want to print scanned images on your Epson ink jet printer, set the output resolution to 300 dpi. If you select a resolution higher than 300 dpi, printing takes a longer time but the output quality does not change.
Scan images for printing in the Home Mode
Follow the steps below to scan images for printing in the Home Mode.
 |
Place your materials on your scanner.
|
 |
Start EPSON Scan and select Home Mode.
|
You see this window:
 |

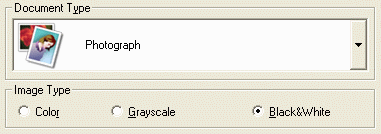

Specify the Document Type and Image Type settings to match your images.
|
 |
Select Printer as the Destination.
|
 |
Click the Preview button.
|
 |
Specify the output size of the scanned image as the Target Size and make adjustments using the image quality adjustment tools, if necessary.
|
 |
Click Scan.
|
The scanned images are sent to the application or saved to the specified folder. If you see the File Save Settings screen, see Save Your Scanned File.
[Top]
Scan documents for printing in the Office Mode
Follow these steps to scan documents for printing in the Office Mode:
|
|
Place your materials on your scanner.
|
When using the Automatic Document Feeder, follow the steps explained in Loading documents in the Automatic Document Feeder or later to scan documents.
|
|
Start EPSON Scan and select Office Mode.
|
You see this window:
|
|
Specify the Image Type and Destination settings to match your images.
|
|
|
Select 300 dpi from the Resolution list.
|
|
|
Click Preview to preview the images.
|
 |  |
Note:
|
| | |
If you do not need to preview an image, click Scan to scan documents without preview.
|
|
|
|
Make adjustments using the image quality adjustment tools, if necessary.
|
|
|
Click Scan.
|
The scanned images are sent to the application or saved to the specified folder. If you see the File Save Settings screen, see Save Your Scanned File.
[Top]
Scan materials for printing in the Professional Mode
Follow these steps to scan materials for printing in the Professional Mode:
|
|
Place your materials on your scanner.
|
When using the Automatic Document Feeder, follow the steps explained in Loading documents in the Automatic Document Feeder or later to scan documents.
|
|
Start EPSON Scan and select Professional Mode.
|
You see this window:
|
|
Specify the Original and Image Type settings to match your images.
|
|
|
Select 300 dpi from the Resolution list.
|
|
|
Click Preview to preview the images.
|
|
|
Specify the output size of the scanned image as the Target Size and make adjustments using the image quality adjustment tools, if necessary.
|
|
|
Click Scan. EPSON Scan starts scanning.
|
The scanned images are sent to the application or saved to the specified folder. If you see the File Save Settings screen, see Save Your Scanned File.
[Top]
| Version 1.00E, Copyright © 2003, SEIKO EPSON CORPORATION |
