How To

Scan Multiple Images Simultaneously

You can scan multiple photos and documents placed together on the document table as separate images.

Note:

Depending on the application, you may not be able to scan multiple images.

Follow the steps below to scan multiple images using Professional Mode.

Place documents or photos on the document table. See Placing Documents and Photos for details.

Note:

If you plan to preview images using the Thumbnail method, position each photo at least 1 inch (20 mm) apart from adjacent photos.

Start EPSON Scan and select Professional Mode. For details on how to select the scanning mode, see Changing the scanning mode.

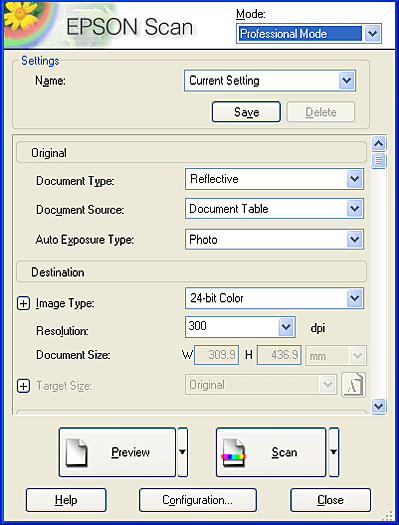

The following window appears.

Specify Original and Destination settings for your images.

Click Preview to preview the images.

Note:

You can select the preview method: Thumbnail Preview or Normal Preview. Click the small arrow to the right of the Preview button and then select Thumbnail or Normal.

In the Thumbnail Preview window:
EPSON Scan automatically locates the photos and previews them as thumbnail images. Select the number check box of each image you want to scan.

Note:

Depending on your originals, EPSON Scan may not be able to automatically locate the target images or preview them as thumbnails. In this case, preview the images in the Normal Preview window.

You can create only one marquee for each thumbnail image.

In the Normal Preview window:
You can create marquees on each previewed image to select the areas you want to scan. You can create up to 50 marquees. For more details, see Using marquees.

Note:

You can select a specific output image size as the Target Size. A marquee proportional to the measurements of the Target Size setting appears in the Preview window. You can move this marquee to the area of the image you want to scan. For details, see EPSON Scan Help.

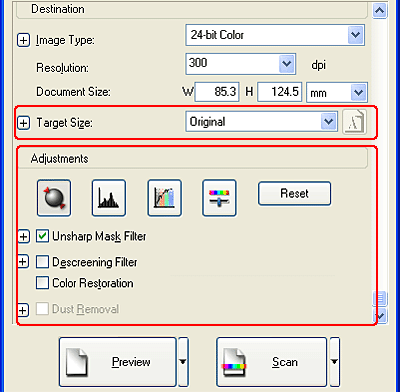

Specify Adjustment settings, if necessary. (You may need to scroll to the bottom of the screen.)

Note:

For some settings, you can apply the same modifications to all of the images at once by clicking All. (In Normal Preview, you need to make Marquees first.) For details, see Using marquees.

Click Scan to start scanning.
The scanned images are sent to the application or saved in the specified folder.
