Product Information / Printer Specifications

Paper

Paper specifications
Printable area

Note:

Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot attest to the quality of any non-EPSON brand or type of paper. Always test samples of paper stock before purchasing large quantities or printing large jobs.

Paper specifications

Single sheets:

Size	Super A3/B (329 mm x 483 mm) A3 (297 mm x 420 mm) US B (279 mm x 432 mm) A4 (210 mm x 297 mm) A5 (148 mm x 210 mm) Letter (216 mm x 279 mm) Half letter (139.7 mm x 215.9 mm) Legal (216 mm x 356 mm) Executive (184.2 mm x 266.7 mm) 100 mm x 150 mm 11 x 14" (279 mm x 356 mm) 8 x 10" (203 mm x 254 mm) 5 x 7" (127 mm x 178 mm) 3.5 x 5" (89 mm x 127 mm)
Paper types	Plain bond paper, special paper distributed by EPSON
Thickness (for plain bond paper)	0.08 mm to 0.11 mm (0.003 to 0.004 inch)
Weight (for plain bond paper)	64 g/m² (17 lb) to 90 g/m² (24 lb)

Envelopes:

Size	No. 10 (104.8 mm x 241.3 mm) DL (110 mm x 220 mm) C6 (114 mm x 162 mm) 132 mm x 220 mm
Paper types	Plain bond paper, air mail
Thickness	0.16 mm to 0.52 mm (0.006 to 0.02 inch)
Weight	45 g/m² (12 lb) to 75 g/m² (20 lb)

Premium Semigloss Photo Paper:

Size

Super A3/B (329 mm x 483 mm)
Letter (216 mm x 279 mm)
A3 (297 mm x 420 mm)
A4 (210 mm x 297 mm)
100 mm x 8 M
329 mm x 10 M
210 mm x 10 M

Paper types

Special paper distributed by EPSON

Enhanced Matte Paper:

Size

Super A3/B (329 mm x 483 mm)

A3 (297 mm x 420 mm)

Letter (216 mm x 279 mm)
A4 (210 mm x 297 mm)
100 mm x 8 M

Paper types

Special paper distributed by EPSON

Watercolor Paper - Radiant White:

Size

Super A3/B (329 mm x 483 mm)

Paper types

Special paper distributed by EPSON

Premium Luster Photo Paper:

Size

Super A3/B (329 mm x 483 mm)

A3 (297 mm x 420 mm)

Letter (216 mm x 279 mm)

329 mm x 10 M

210 mm x 10 M

Paper types

Special paper distributed by EPSON

Velvet Fine Art Paper:

Size

Super A3/B (329 mm x 483 mm)

Letter (216 mm x 279 mm)

Paper types

Special paper distributed by EPSON

Premium Glossy Photo Paper:

Size	Super A3/B (329 mm x 483 mm) A3 (297 mm x 420 mm) Letter (216 mm x 279 mm) A4 (210 mm x 297 mm) 5 x 7" (127 mm x 178 mm) 8 x 10" (203 mm x 254 mm) 11 x 14" (279 mm x 356 mm) 100 mm x 8 M 210 mm x 10 M 329 mm x 10 M

Note:

Poor quality paper may reduce print quality and cause paper jams or other problems. If you encounter problems, switch to a higher grade of paper.

Do not load curled or folded paper.

Use paper under normal conditions:
Temperature 15 to 25°C (59 to 77°F)
Humidity 40 to 60% RH

[Top]

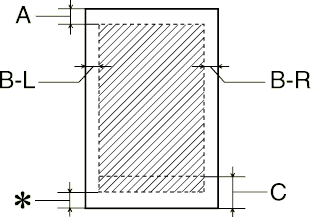

Printable area

Single sheets (including panoramic size)

Normal

No Margins

Envelopes

A:	The minimum top margin is 3.0 mm (0.12").
B-L:	The minimum left margin is 3.0 mm (0.12").
B-R:	The minimum right margin is 3.0 mm (0.12").
C:	The minimum setting of the bottom margin is 14.0 mm (0.55"). When printing near the minimum bottom margin, some colors may not be printed properly. If this occurs, try increasing the bottom margin.
:	You can extend the minimum bottom margin to 3 mm by selecting Maximum as the Printable Area setting on the printer software's Paper menu (Windows) or in the Page Setup dialog box (Macintosh). However, print quality may decline in the expanded area. Before printing large jobs using this setting, print a single sheet to confirm printout quality.
:	When printing with the Borderlessfeature, print quality may decline in the top and bottom areas of the printout, or the area may be smeared.

Note:

Always load paper into the sheet feeder short edge first. Load envelopes flap edge first with the flap side down.
