Specifications
Printing
|
Printing method
|
On-demand ink jet
|
|
Nozzle configuration
|
Black: 48 nozzles
Color: 240 nozzles (48 each: cyan, light cyan, magenta, light magenta, yellow)
|
|
Maximum Print Resolution
|
5760 × 720 optimized dpi
|
|
Print direction
|
Bidirectional with logic seeking
|
|
Control code
|
ESC/P® raster
EPSON Remote
|
Paper
Note: Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot guarantee the quality of any non-EPSON brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Single sheets
|
Size
|
A4 (8.3 × 11.7 inches)
A5 (5.8 × 8.3 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Half-letter (5.5 × 8.5 inches)
Executive (7.3 × 10.5 inches)
4 × 6 inches
5 × 7 inches
3.5 × 5 inches
8 × 10 inches
User Defined up to 8.3 × 44 inches
|
|
Paper type
|
Plain bond paper or special paper distributed by EPSON
|
|
Thickness
|
0.003 to 0.051 inch (0.08 to 1.3 mm)
|
|
Weight (for plain bond paper)
|
17 lb (64 g/m²) to 24 lb (90 g/m²)
|
Envelopes
|
Size
|
No. 10 (4.1 × 9.5 inches)
DL (4.3 × 8.7 inches)
C6 (4.5 × 6.4 inches)
|
|
Paper type
|
Plain bond paper or air mail paper
|
|
Weight
|
12 lb (45 g/m²) to 20 lb (75 g/m²)
|
Premium Bright White Paper
|
Size
|
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Photo Quality Ink Jet Paper
|
Size
|
Letter (8.5 × 11 inches)
A4 (8.3 × 11.7 inches)
Legal (8.5 × 14 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Photo Quality Ink Jet Cards
|
Size
|
A6 (4.1 × 5.8 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Photo Paper and Glossy Photo Paper
|
Size
|
Letter (8.5 × 11 inches)
A4 (8.3 × 11.7 inches)
Panoramic (8.5 × 14 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Matte Paper Heavyweight
|
Size
|
8 × 10 inches (BorderFree)
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Premium Glossy Photo Paper
|
Size
|
4 × 6 inches (BorderFree)
5 × 7 inches (BorderFree)
8 × 10 inches (BorderFree)
Letter (8.5 × 11 inches)
Roll (4 inches × 26 feet)
Roll (8.3 inches × 32.8 feet)
|
|
Paper type
|
Special paper distributed by EPSON
|
Premium Semigloss Photo Paper
|
Size
|
Letter (8.5 × 11 inches)
Roll (4 inches × 26 feet)
|
|
Paper type
|
Special paper distributed by EPSON
|
Premium Luster Photo Paper
|
Size
|
Roll (8.3 inches × 32.8 feet)
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
ColorLife Photo Paper
|
Size
|
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Ink Jet Transparencies
|
Size
|
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Iron-On Transfer Paper
|
Size
|
Letter (8.5 × 11 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Photo Quality Self Adhesive Sheets
|
Size
|
A4 (8.3 × 11.7 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Photo Stickers
|
Size
|
A6 (4.1 × 5.8 inches)
|
|
Paper type
|
Special paper distributed by EPSON
|
Glossy Photo Greeting Cards
|
Size
|
Letter (8.5 × 11 inches, perforated edges)
|
|
Paper type
|
Special paper distributed by EPSON
|
Note: Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH

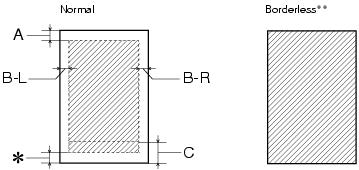

Printable Area
Single sheets or cards
Envelopes
|
A:
|
The minimum top margin is 0.12" (3.0 mm).
|
|
B-L:
|
The minimum left margin is 0.12" (3.0 mm).
|
|
B-R:
|
The minimum right margin is 0.12" (3.0 mm).
|
|
C:
|
The minimum bottom margin is 0.55" (14 mm).
|
|
*
|
You can extend the minimum bottom margin to 0.12" (3 mm) using the maximize (Windows) or minimize (Macintosh) margins feature, however print quality may decline in the expanded area. Before printing large jobs using an extended margin setting, print a single sheet to confirm printout quality.
|
|
**
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note: Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Mechanical
|
Paper feed method
|
Friction
|
|
Paper path
|
Sheet feeder, top entry and manual feed, back entry
|
|
Sheet feeder capacity
|
About 100 sheets at 17 lb (65.8 g/m²)
|
|
Dimensions
|
Width: 19.4 inches (493 mm)
Depth: 21.5 inches (546 mm)
Height: 11.9 inches (302 mm)
|
|
Weight
|
15.2 lb (6.9 kg) without the ink cartridges
|
Ink Cartridges
Black Ink Cartridge (T007)
|
Color
|
Black
|
|
Print capacity*
|
540 pages/A4 (ISO/IEC 10561 Letter Pattern at 360 dpi)
|
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:
-22 to 140 °F (-30 to 60 °C)
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Freezing:** 3.2 °F (-16 °C)
|
|
Dimensions
|
Width: 0.8 inches (20.1 mm)
Depth: 2.4 inches (60 mm)
Height: 1.5 inches (38.5 mm)
|
Color Ink Cartridge (T009)
|
Color
|
Cyan, light cyan, magenta, light magenta, and yellow
|
|
Print capacity*
|
330 pages (A4, 360 dpi, 5% duty each color)
|
|
Cartridge life
|
6 months at 77 °F (25 °C) after opening the package
|
|
Temperature
|
Storage:
-4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:
-22 to 140 °F (-30 to 60 °C)
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Freezing:** -0.4 °F (-18 °C)
|
|
Dimensions
|
Width: 1.9 inches (49.1 mm)
Depth: 3.3 inches (84.05 mm)
Height: 1.6 inches (41.8 mm)
|
* The figure given is based upon continuous printing after ink cartridge replacement. The actual print capacity may vary, depending on how often you use the print head cleaning function and how often you turn the printer on.
** Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution: To ensure good results, use genuine EPSON ink cartridges and do not refill them. Other products may cause damage to your printer not covered by EPSON's warranty.
Do not use an ink cartridge if the date on the package has expired.
Electrical
|
Rated voltage
|
120V
|
|
Input voltage range
|
99 to 132V
|
|
Rated frequency range
|
50 to 60 Hz
|
|
Input frequency range
|
49.5 to 60.5 Hz
|
|
Rated current
|
0.3 A (0.5 A max)
|
|
Power consumption
|
Approx. 12 W (ISO10560 Letter pattern)
Approx. 5 W in sleep mode
Approx. 0.2 W in power-off mode
|
Note: Check the label on the back of the printer for the voltage information.
Environmental
|
Temperature
|
Operation: 50 to 95 °F (10 to 35 °C)
Storage: -4 to 104 °F (-20 to 40 °C)
1 month at 104 °F (40 °C)
Transit:* -4 to 140 °F (-20 to 60 °C)
120 hours at 140 °F (60 °C)
|
|
Humidity
|
Operation: 20 to 80% RH
Storage:*, ** 5 to 85% RH
|
* Stored in shipping container
** Without condensation
Standards and Approvals
|
Safety
|
UL 60950
CSA C22.2 No. 60950
|
|
EMC
|
FCC part 15 Subpart B class B
CSA C108.8 Class B
|
