Various Printing Options

Printing on Envelopes

Loading envelopes
Printing on envelopes

When printing on envelopes, please note the following:

You can load up to 10 envelopes at a time in the sheet feeder.

Note:

The folding quality and thickness of envelopes varies widely. If the total thickness of the stack of envelopes exceeds 10 mm, press each envelope in the stack flat before loading. If print quality declines when a stack of envelopes is loaded, load one envelope at a time.

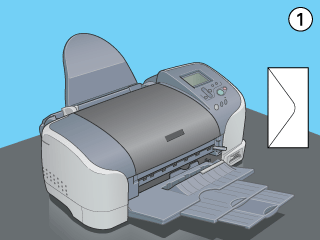

Load envelopes short edge first with the flap side left, as shown in the illustration.

Do not use envelopes that are curled or folded.

Flatten the envelope flaps before loading.

Avoid using envelopes that are too thin as they may curl during printing.

A:	The minimum top margin is 3.0 mm (0.12").
B-L:	The minimum left margin is 3.0 mm (0.12").
B-R:	The minimum right margin is 3.0 mm (0.12").
C:	The minimum bottom margin is 14 mm (0.78").
:	You can extend the minimum bottom margin to 3 mm by selecting Maximum as the Printable Area setting on the printer software's Paper menu (Windows) or in the Page Setup dialog box (Macintosh). However, print quality may decline in the expanded area.
