How To / Using Automatic Roll Paper Cutter

Attaching the Photo Basket

To receive the paper cut off by the cutter, attach the photo basket. Follow the steps below.

Caution:

When using the basket, move the printer to the edge of the desk or table so that the cloth of the basket hangs as shown in the illustration. Be careful not to let the printer fall from the desk or table when moving it. In addition, do not place the printer on an unstable surface.

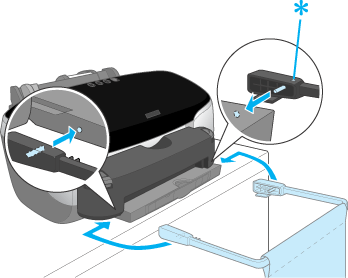

Attach the arm parts of the basket to the output tray.

Insert the stick shaped projection with

mark side up to the hole of the output tray.

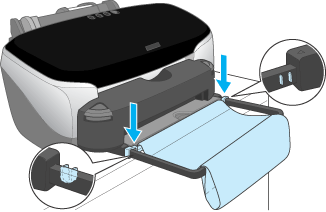

Fix the shaft part of the basket by putting it into the groove of the arm.

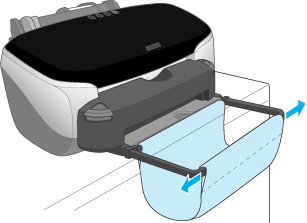

Put the cloth inside of the arm and make it like a bag, then remove any slack by pulling the edges of the cloth to left and right.

Caution:

The following specifies the size and amount of the roll paper the catcher can hold.

Length range from 55 mm to 178 mm: 40 sheets

Length range from 178 mm to 297 mm: 1 sheet

In addition, remove the basket in case the length exceeds 297 mm. If you use paper in excess of this range, a paper jam may occur or the photo catcher may be damaged.
