Common Operations

Placing Photos and Documents on the Document Table

Before scanning a document, remember to respect the rights of copyright owners. Do not scan published text or images without first checking the copyright status.

Caution:

Do not place heavy objects on the document table glass. Also, do not press the document table glass with too much force.

Open the document cover and make sure the fluorescent lamp on the carriage turns on.

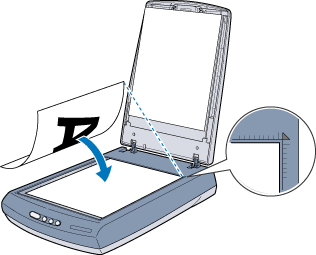

Place the document on the document table, with the side to be scanned facing down. Make sure that the document is carefully aligned with the alignment mark, as shown below.

Note:

An area of 2 mm from the horizontal edge and 1.5 mm from the vertical edge of the document table glass will not be scanned.

1. Maximum unreadable area of 2 mm
2. Maximum unreadable area of 1.5 mm

If you are scanning multiple photos in Full Auto Mode or previewing images using the Thumbnail window, position each photo at least 0.8 inches (20 mm) apart from adjacent photos.

When using the Copy Center feature in EPSON Smart Panel, place the document in the lower left corner of the document table.

Close the scanner lid gently so that the document does not move.

Note:

Always keep the document table clean.

Do not leave photographs on the document table for an extended period of time or they may stick to the glass.

Do not place heavy objects on top of the scanner.
